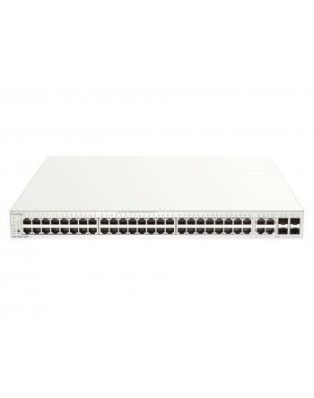

D-Link DBS-2000-52MP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
In Stock
|
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Combo SFP ports quantity | 4 |
Console port | RJ-45 |
Network | |
IGMP snooping | Yes |
Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
Networking standards | IEEE 802.3adIEEE 802.3at |
Spanning tree protocol | Yes |
Link aggregation | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Performance | |
Packet buffer memory | 12 MB |
Processor frequency | 700 MHz |
Memory type | DDR3-SDRAM |
Mean time between failures (MTBF) | 236406 h |
Internal memory | 256 MB |
Flash memory | 32 MB |
Built-in processor | Yes |
Technical details | |
Product colour | Grey |
Processor frequency | 700 MHz |
Mean time between failures (MTBF) | 236406 h |
Built-in processor | Yes |
Shipping (inner) case width | 12.4" (31.5 cm) |
Shipping (inner) case net weight | 38.1 lbs (17.3 kg) |
Shipping (inner) case length | 22.6" (57.4 cm) |
Shipping (inner) case height | 23.5" (59.8 cm) |
Quantity per shipping (inner) case | 2 pcs |
Shipping (inner) case gross weight | 41 lbs (18.6 kg) |
Quantity per pallet (sea) | 36 pcs |
Quantity per pallet (air) | 24 pcs |
Pallet width | 47.2" (120 cm) |
Pallet length | 43.3" (110 cm) |
Pallet height (sea) | 75.9" (192.9 cm) |
Pallet height (air) | 52.4" (133.1 cm) |
Pallet gross weight (sea) | 782.2 lbs (354.8 kg) |
Pallet gross weight (air) | 535.1 lbs (242.7 kg) |
Number of cartons per pallet (sea) | 18 |
Number of cartons per pallet (air) | 12 |
Management features | |
Switch type | Managed |
Web-based management | Yes |
Data transmission | |
Packet buffer memory | 12 MB |
Switching capacity | 104 Gbit/s |
Forwarding rate | 77.4 Mpps |
Security | |
Security algorithms | WPAWPA2 |
IGMP snooping | Yes |
Memory | |
Packet buffer memory | 12 MB |
Memory type | DDR3-SDRAM |
Internal memory | 256 MB |
Flash memory | 32 MB |
Design | |
Product colour | Grey |
LED indicators | Yes |
Indication | |
LED indicators | Yes |
Power | |
Power consumption (max) | 478.9 W |
AC input voltage | 100 - 240 V |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 370 W |
Power over Ethernet (PoE) ports quantity | 48 |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -20 - 70 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | -5 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Heat dissipation | 1634.01 BTU/h |
Weight & dimensions | |
Width | 17.3" (440 mm) |
Depth | 16.9" (430 mm) |
Height | 1.73" (44 mm) |
Weight | 13.8 lbs (6.26 kg) |
D-Link DBS-2000-52MP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Weight | 8.690000 lbs |
