Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1w-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3bt-IEEE 802.3u-IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Rate limiting
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
Port-based VLAN-Tagged VLAN-Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Port-based VLAN-Tagged VLAN-Voice VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
9216
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Noise level
37 dB
Mean time between failures (MTBF)
406887 h
Flash memory
16 MB
Technical details
Form factor
1U
Product colour
Black
Noise level
37 dB
Mean time between failures (MTBF)
406887 h
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Security
Security algorithms
SSL/TLS
IGMP snooping
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Certificates
Certification
FCC A- CE A- VCCI A- C-Tick- BSMI cUL- UL- LVD- CB- BSMI
Memory
Packet buffer memory
4.1 MB
Flash memory
16 MB
Design
Form factor
1U
Product colour
Black
Certification
FCC A- CE A- VCCI A- C-Tick- BSMI cUL- UL- LVD- CB- BSMI
Rack mounting
Yes
Power
Power consumption (max)
164.6 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
118.1 BTU/h
Weight & dimensions
Width
280 mm
Depth
180 mm
Height
44 mm
Weight
1.5 kg

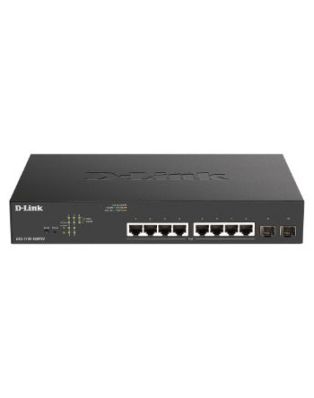

D-Link Gigabit Smart Managed Switches
| Length | 18.00 in |
| Width | 28.00 in |
| Height | 4.40 in |
| Weight | 1.500000 lbs |
