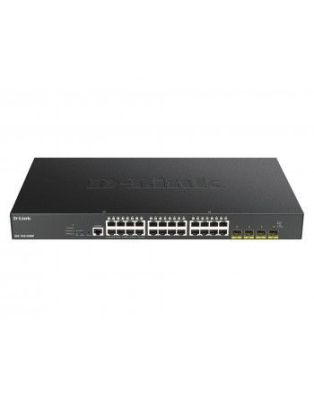

D-Link DGS-1250-28XMP network switch Managed L3 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC2893- RFC4213- RFC4291- RFC2464- RFC2462- RFC4862- RFC2461- RFC4861- RFC2573- RFC1321- RFC2284- RFC2865- RFC2716- RFC3580- RFC826- RFC2463- RFC4443- RFC792- RFC793- RFC768- RFC791- RFC2389- RFC4113- RFC4022- RFC2618- RFC2674- RFC1398- RFC1643- RFC1650- RFC2358- RFC2665- RFC2021- RFC271- RFC1757- RFC2819- RFC1442- RFC1901- RFC1902- RFC1903- RFC1904- RFC1905- RFC1906- RFC1907- RFC1908- RFC2578- RFC3418- RFC2573- RFC2575- RFC2576- RFC1212- RFC1213- RFC1215- RFC1493- RFC1157- RFC2620-
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Network
IGMP snooping
Yes
Cable types supported
Cat5-Cat5e
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.3af-IEEE 802.3at
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Voice VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
12000
Number of static routes
124
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
95.24 Mpps
Performance
Packet buffer memory
12 MB
Noise level
50.8 dB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
463430.16 h
Internal memory
2048 MB
Flash memory
64 MB
Firmware upgradeable
Yes
Technical details
Product colour
Black
Noise level
50.8 dB
Mean time between failures (MTBF)
463430.16 h
Firmware upgradeable
Yes
Shipping (inner) case width
47.8 cm
Shipping (inner) case net weight
19.3 kg
Shipping (inner) case length
58.5 cm
Shipping (inner) case height
42.8 cm
Quantity per shipping (inner) case
5 pc(s)
Quantity per pallet (sea)
80 pc(s)
Quantity per pallet (air)
80 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
184.7 cm
Pallet height (air)
184.7 cm
Pallet gross weight (sea)
426 kg
Pallet gross weight (air)
426 kg
Number of cartons per pallet (sea)
16 pc(s)
Number of cartons per pallet (air)
16 pc(s)
Optical fiber
Fiber ethernet cabling technology
100BASE-FX-1000BASE-LHX-1000BASE-X-1000BASE‑LX-1000BASE‑SX-1000BASE‑ZX
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
Access Control List (ACL) rules
768
Security algorithms
EAP-LEAP-MD5-PEAP-SSH-SSL/TLS-TTLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
DHCP features
DHCP server-DHCP snooping
Multicast features
Multicast support
Yes
Certificates
Electromagnetic compatibility
CE A- VCCI A- FCC A- IC- BSMI
Certification
CB- UL- BSMI- CCC
Memory
Packet buffer memory
12 MB
Memory type
DDR3-SDRAM
Internal memory
2048 MB
Flash memory
64 MB
Design
Product colour
Black
LED indicators
Activity- Link- Power- Speed
Electromagnetic compatibility
CE A- VCCI A- FCC A- IC- BSMI
Certification
CB- UL- BSMI- CCC
Indication
LED indicators
Activity- Link- Power- Speed
Power
Power consumption (max)
455.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
15.4 W
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
1551.891 BTU/h
Weight & dimensions
Width
440 mm
Depth
250 mm
Height
44 mm
Weight
3.46 kg
Packaging data
Package width
393 mm
Package depth
563 mm
Package height
89 mm
Package weight
4.76 kg
D-Link DGS-1250-28XMP network switch Managed L3 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
| Length | 25.00 in |
| Width | 44.00 in |
| Height | 4.40 in |
| Weight | 3.460000 lbs |
