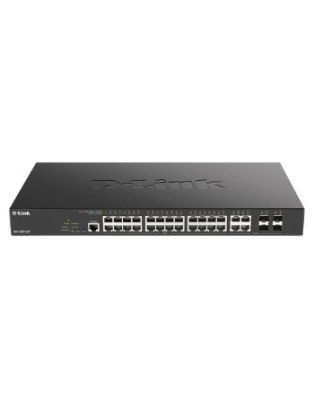

D-Link DGS-2000-28P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Auto MDI/MDI-X
Yes
Half duplex
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Data transmission
Multicast Listener Discovery (MLD) snooping
Yes
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
56 Gbit/s
Store-and-forward
Yes
Forwarding rate
41.7 Mpps
Performance
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
469262 h
Internal memory
256 MB
Flash memory
32 MB
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
469262 h
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
4
Console port
RJ-45
Security
Static port security
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP relay-DHCP snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Activity- Link- Power- Speed
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Activity- Link- Power- Speed
Power
Power consumption (max)
236.9 W
AC input voltage
100 - 240 V
Power consumption (typical)
19.6 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
193 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
900.36 BTU/h
Weight & dimensions
Width
440 mm
Depth
250 mm
Height
44 mm
Weight
3.75 kg
Other features
Ethernet LAN data rates
10-100-1000 Mbit/s
D-Link DGS-2000-28P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
| Length | 25.00 in |
| Width | 44.00 in |
| Height | 4.40 in |
| Weight | 3.750000 lbs |
