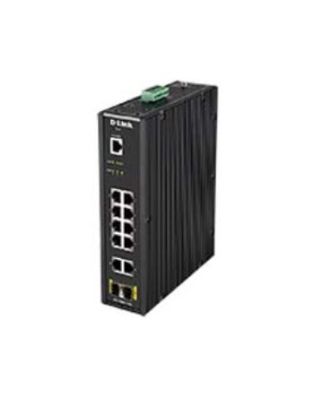

DIS 200G-12S - Switch - managed - 10 x 10/100/1000 + 2 x SFP
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Gigabit Ethernet (copper) ports quantity
10
Console port
RJ-45
Network
IGMP snooping
Yes
Active link detection
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Voice VLAN-Tagged VLAN-Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Voice VLAN-Tagged VLAN-Port-based VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
9216
MAC address table
8000 entries
Switching capacity
24 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
17.85 Mpps
Performance
Auto-negotiation
Yes
Mean time between failures (MTBF)
276773 h
Technical details
Product colour
Black
Mean time between failures (MTBF)
276773 h
Housing material
Metal
Rack mounting
Yes
Shipping (inner) case width
37.2 cm
Shipping (inner) case net weight
10.4 kg
Shipping (inner) case length
40.9 cm
Shipping (inner) case height
25.2 cm
Quantity per shipping (inner) case
5 pc(s)
Quantity per pallet (sea)
210 pc(s)
Quantity per pallet (air)
120 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
189.9 cm
Pallet height (air)
114.3 cm
Pallet gross weight (sea)
470.4 kg
Pallet gross weight (air)
268.8 kg
Number of cartons per pallet (sea)
42 pc(s)
Number of cartons per pallet (air)
24 pc(s)
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Security
Authentication
Port-based authentication
Security algorithms
802.1x RADIUS-SSL/TLS
IGMP snooping
Yes
Queue scheduling algorithms
SPQ-Weighted Round Robin (WRR)
DoS attack prevention
Yes
Authentication type
RADIUS
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP v1/v2c/v3- SNTP- Telnet
Certificates
Safety
UL60950-1
Electromagnetic compatibility
CISPR 22- FCC Part 15B Class A
Certification
CE- FCC- BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Safety
UL60950-1
Product colour
Black
LED indicators
Yes
Housing material
Metal
Electromagnetic compatibility
CISPR 22- FCC Part 15B Class A
Certification
CE- FCC- BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
10.26 W
DC input voltage
12 - 48 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
35.01 BTU/h
Weight & dimensions
Width
171.2 mm
Depth
48 mm
Height
210 mm
Packaging data
Package width
217 mm
Package depth
355 mm
Package height
76 mm
Package weight
2.07 kg
DIS 200G-12S - Switch - managed - 10 x 10/100/1000 + 2 x SFP
| Weight | 1.000000 lbs |
