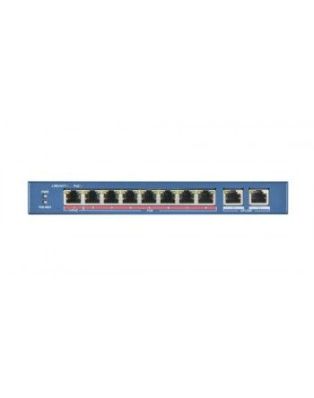

Hikvision Digital DS-3E0310HP-E network switch Unmanaged Fast Ethernet (10/100) Blue Power over Ethernet (PoE)
In Stock
|
Technical details
Product colour
Blue
Housing material
Metal
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity
2
Network
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3bt-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
MAC address table
16000 entries
Switching capacity
5.6 Gbit/s
Store-and-forward
Yes
Forwarding rate
4.166 Mpps
Design
Product colour
Blue
LED indicators
Yes
Housing material
Metal
Indication
LED indicators
Yes
Power
Power consumption (max)
120 W
Power consumption (typical)
10 W
Input current
2.5 A
DC input voltage
48 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
60 W
Total Power over Ethernet (PoE) budget
110 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
217.6 mm
Depth
103.3 mm
Height
27.8 mm
Weight
550 g
Packaging data
Package weight
1.22 kg
Hikvision Digital DS-3E0310HP-E network switch Unmanaged Fast Ethernet (10/100) Blue Power over Ethernet (PoE)
| Weight | 1.000000 lbs |
