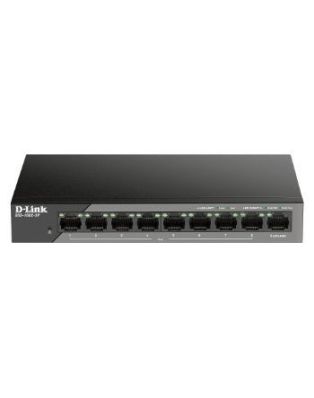

D-Link Fast Ethernet PoE Unmanaged Surveillance Switches
In Stock
|
Performance
Packet buffer memory
0.128 MB
Mean time between failures (MTBF)
52308 h
Technical details
Product colour
Black
Mean time between failures (MTBF)
52308 h
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity
1
Network
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3u-IEEE 802.3x
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.128 MB
MAC address table
2000 entries
Switching capacity
1.8 Gbit/s
Store-and-forward
Yes
Forwarding rate
2.67 Mpps
Certificates
Certification
CE- RoHS
Memory
Packet buffer memory
0.128 MB
Design
Product colour
Black
LED indicators
Activity- Link- PoE- Power- Speed
Certification
CE- RoHS
Indication
LED indicators
Activity- Link- PoE- Power- Speed
Power
Power consumption (max)
102 W
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
92 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
486.7 BTU/h
Weight & dimensions
Width
177 mm
Depth
104 mm
Height
26 mm
Weight
410 g
Packaging data
User guide
Yes
Packaging content
User guide
Yes
D-Link Fast Ethernet PoE Unmanaged Surveillance Switches
| Weight | 1.790000 lbs |
