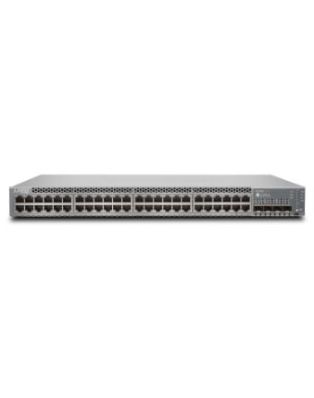

Juniper EX2300-48P - 48-Port 10/100/1000BASE-T PoE+ Switch
In Stock
|
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-T1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber ports quantity
4
Fiber optic connector
SFPSFP+
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Virtual LAN features
MAC address-based VLANPort-based VLANVoice VLAN
Data transmission
Number of VLANs
4093
Jumbo frames
9216
Throughput
130 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Static route
Yes
Optical fiber
Fiber optic connector
SFPSFP+
Technical details
Form factor
1U
Product colour
Black
Processor frequency
1250 MHz
Noise level
51.4 dB
Rack mounting
Yes
Built-in processor
Yes
Sustainability certificates
RoHS
Management features
Switch type
Managed
Switch layer
L2/L4
Network
Copper ethernet cabling technology
10BASE-T100BASE-T1000BASE-T
VLAN support
Yes
Number of VLANs
4093
Auto MDI/MDI-X
Yes
Virtual LAN features
MAC address-based VLANPort-based VLANVoice VLAN
Security
Security algorithms
HTTPS
Authentication type
HWTACACS+NAC SSH V2.0RADIUS
Access Control List (ACL) ingress
256
Access Control List (ACL) egress
256
DHCP features
DHCP clientDHCP relayDHCP server
Protocols
Routing protocols
OSPFOSPFv2RIP-1RIP-2
Certificates
Memory
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Design
Form factor
1U
Product colour
Black
Rack mounting
Yes
Temperature sensor
Yes
Performance
Processor frequency
1250 MHz
Noise level
51.4 dB
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Built-in processor
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
441.9 mm
Depth
309.8 mm
Height
44.5 mm
Weight
5.02 kg
Juniper EX2300-48P - 48-Port 10/100/1000BASE-T PoE+ Switch
| Length | 30.98 in |
| Width | 44.19 in |
| Height | 4.45 in |
| Weight | 5.020000 lbs |
