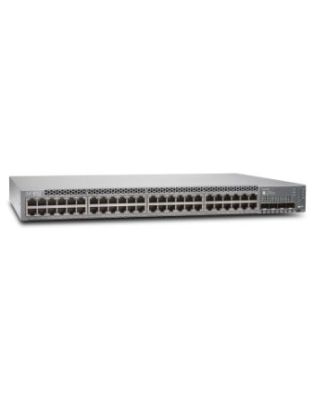

Juniper EX2300-48T network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Grey
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-T1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
LCSX
Console port
RJ-45/Mini-USB
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-T1000BASE-T
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Tagged VLANProtocol-based VLANPort-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Virtual LAN features
Tagged VLANProtocol-based VLANPort-based VLAN
Data transmission
Number of multicast groups filtered
1024
Number of VLANs
4093
Jumbo frames
9216
Throughput
130 Mpps
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Optical fiber
Fiber optic connector
LCSX
Fiber type
Multi-mode
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1250 MHz
Noise level
34.6 dB
Rack mounting
Yes
Security
Authentication
Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
SNMPSSHSSH-2
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP serverDHCP client
Multicast features
Number of multicast groups filtered
1024
Multicast support
Yes
Protocols
Supported network protocols
HTTP/HTTPs RIP v1 RIPv2 IPv4 IPv6
Memory
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Design
Safety
UL-UL60950-1 C-UL to CAN/CSA 22.2 No.60950-1 TUV/GS to EN 60950-1 CB-IEC60950-1 EN 60825-1
Form factor
1U
Product colour
Grey
LED indicators
Yes
Certification
FCC 47CFR Part 15 Class A EN 55022 Class A ICES-003 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 22 Class A EN 55024 EN 300386 CE
Rack mounting
Yes
Performance
Processor frequency
1250 MHz
Noise level
34.6 dB
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Indication
LED indicators
Yes
Power
Power consumption (typical)
70 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3962 m
Non-operating altitude
0 - 4572 m
Weight & dimensions
Width
441.9 mm
Depth
259 mm
Height
44.5 mm
Weight
3.76 kg
Juniper EX2300-48T network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Grey
| Length | 25.90 in |
| Width | 44.19 in |
| Height | 4.45 in |
| Weight | 3.760000 lbs |
