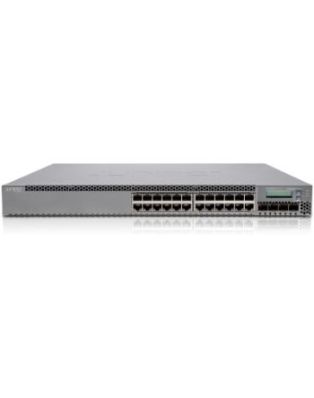

EX3300, 24-PORT 10/100/1000BASET POE
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Data transmission
Number of VLANs
4096
Throughput
95 Mpps
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Technical details
Form factor
1U
Product colour
Black
Processor frequency
1000 MHz
Noise level
45.4 dB
Housing material
Metal
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP/SFP+ slots quantity
4
Network
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Security
MAC address filtering
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SSH DNS PACL VACL RACL
Supported network protocols
NTP
Memory
Internal memory
1024 MB
Flash memory
1024 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Link Status
Housing material
Metal
Rack mounting
Yes
Number of fans
1 fan(s)
Performance
Processor frequency
1000 MHz
Noise level
45.4 dB
Internal memory
1024 MB
Flash memory
1024 MB
Indication
LED indicators
Link Status
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
550 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
437 mm
Depth
310 mm
Height
44 mm
Weight
5.3 kg
Packaging data
Manual
Yes
Packaging content
Manual
Yes
EX3300, 24-PORT 10/100/1000BASET POE
| Length | 31.00 in |
| Width | 43.70 in |
| Height | 4.40 in |
| Weight | 5.300000 lbs |
