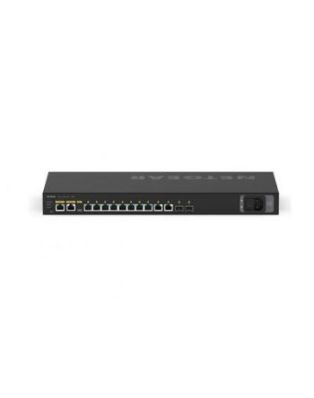

Netgear GSM4212P-100EUS M4250-10G2F Managed L2/L3 Gigabit Ethernet Power over Ethernet (PoE) 1U Black
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
IPv6 multicast entries
2000
IPv4 multicast entries
2000
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Number of VLANs
4093
Link aggregation
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Data transmission
Number of VLANs
4093
Jumbo frames
12000
Throughput
17.86 Mpps
Latency (1 Gbps)
2.27 µs
Packet buffer memory
16 MB
MAC address table
16000 entries
Switching capacity
24 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Performance
Packet buffer memory
16 MB
Processor frequency
1250 MHz
Noise level
30.06 dB
Mean time between failures (MTBF)
778769 h
Internal memory
2048 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Technical details
Form factor
1U
Product colour
Black
Processor frequency
1250 MHz
Noise level
30.06 dB
Mean time between failures (MTBF)
778769 h
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
10
Security
Loop protection
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
Multicast features
Multicast support
Yes
IPv6 multicast entries
2000
IPv4 multicast entries
2000
Memory
Packet buffer memory
16 MB
Internal memory
2048 MB
Design
Form factor
1U
Product colour
Black
LED indicators
PoE- Power- Status
Rack mounting
Yes
Indication
LED indicators
PoE- Power- Status
Power
Power consumption (typical)
163.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
150 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
559.555 BTU/h
Weight & dimensions
Width
440 mm
Depth
200 mm
Height
43.2 mm
Weight
2.85 kg
Netgear GSM4212P-100EUS M4250-10G2F Managed L2/L3 Gigabit Ethernet Power over Ethernet (PoE) 1U Black
| Length | 20.00 in |
| Width | 44.00 in |
| Height | 4.32 in |
| Weight | 2.850000 lbs |
