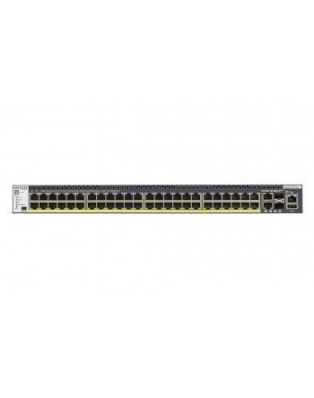

Netgear M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3/L4
Networking
IGMP snooping
Yes
Cable types supported
Cat5Cat5eCat6Cat7Fiber
Auto-sensing
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
Virtual LAN features
Private VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN
Data transmission
Number of multicast groups filtered
4000
Number of VLANs
4000
Jumbo frames
9000
Number of static routes
64
Packet buffer memory
16 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
357 Mpps
Optical fiber
Fiber optic connector
SFP+
Performance
Packet buffer memory
16 MB
Stackable
Yes
Auto-negotiation
Yes
Processor frequency
800 MHz
Noise level
39.8 dB
Mean time between failures (MTBF)
673207 h
Internal memory
1024 MB
Flash memory
256 MB
Built-in processor
Yes
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Processor frequency
800 MHz
Noise level
39.8 dB
Mean time between failures (MTBF)
673207 h
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity
1
Fiber optic connector
SFP+
Console port
RJ-45/Mini-USB
Security
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Security algorithms
HTTPSSNMPSSH
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP serverDHCP client
Multicast features
Number of multicast groups filtered
4000
Multicast support
Yes
Memory
Packet buffer memory
16 MB
Internal memory
1024 MB
Flash memory
256 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
ActivityPowerSpeed
Rack mounting
Yes
Indication
LED indicators
ActivityPowerSpeed
Power
Power consumption (max)
888 W
Power supply included
Yes
AC input voltage
120 - 230 V
Redundant power supply (RPS) support
Yes
Number of power supply units
1
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
591 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 118110.2" (0 - 3000 m)
Heat dissipation
303163 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
15.3" (388 mm)
Height
1.73" (44 mm)
Weight
14.7 lbs (6.67 kg)
Packaging data
Rubber feet
Yes
Rack mount kit
Yes
Resource CD
Yes
User guide
Yes
Cables included
ACLAN (RJ-45)Mini-USB
Packaging content
Rubber feet
Yes
Rack mount kit
Yes
Resource CD
Yes
User guide
Yes
Cables included
ACLAN (RJ-45)Mini-USB
Netgear M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
| Length | 38.80 in |
| Width | 44.00 in |
| Height | 4.40 in |
| Weight | 6.670000 lbs |
