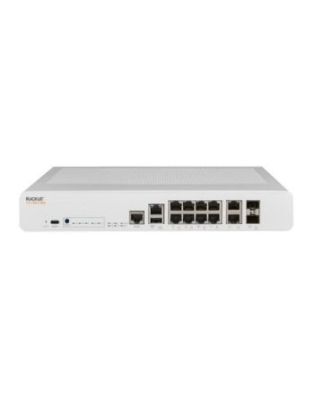

Ruckus ICX 7150-C10ZP - Compact - switch - L3 - managed - 2 x 100/1000/2.5G/5G/10GBase-T (PoH) + 2 x 100/1000/2.5G (PoH) + 6 x 100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ (uplink / stacking) - desktop - PoH / PoE+ (240 W) - Compliant
In Stock
|
SPECIFICATIONS
Product Description
Ruckus ICX 7150-C10ZP - Compact - switch - 12 ports - managed
Device Type
Switch - 12 ports - L3 - managed - stackable
Subtype
10 Gigabit Ethernet
Power Over Ethernet (PoE)
PoH / PoE+
PoE Budget
240 W
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
12 in x 12 in x 1.7 in
Weight
7.87 lbs
General
Device Type
Switch - 12 ports - L3 - managed - stackable
Enclosure Type
Desktop
Subtype
10 Gigabit Ethernet
Power Over Ethernet (PoE)
PoH / PoE+
PoE Budget
240 W
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Max Units In A Stack
12
Remote Management Protocol
Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP
Encryption Algorithm
AES
Authentication Method
RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2)
RAM
1 GB
Flash Memory
2 GB
Status Indicators
Power status
Power
Power Device
Internal power supply
Installed Qty
1 (installed) / 1 (max)
Power Provided
300 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories
Rubber feet
Cables Included
1 x console cable
MTBF
529625 hours
Compliant
Yes
Dimensions & Weight
Width
12 in
Depth
12 in
Height
1.7 in
Weight
7.87 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
0 - 95% (non-condensing)
Ruckus ICX 7150-C10ZP - Compact - switch - L3 - managed - 2 x 100/1000/2.5G/5G/10GBase-T (PoH) + 2 x 100/1000/2.5G (PoH) + 6 x 100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ (uplink / stacking) - desktop - PoH / PoE+ (240 W) - Compliant
| Length | 30.48 in |
| Width | 30.48 in |
| Height | 4.32 in |
| Weight | 3.570000 lbs |
