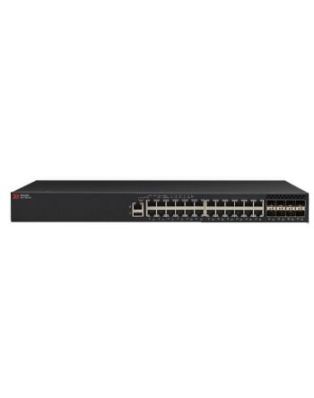

Ruckus ICX 7250-24 - Switch - L3 - managed - 24 x 10/100/1000 + 6 x 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+ - front and side to back - rack-mountable
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
IGMP proxy
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Data transmission
Number of VLANs
4096
Jumbo frames
9216
MAC address table
32768 entries
Jumbo frames support
Yes
Performance
Stackable
Yes
Physical stacking (units)
12
Internal memory
1024 MB
Flash memory
1024 MB
Technical details
Physical stacking (units)
12
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
6
Installed SFP+ modules quantity
2
Gigabit Ethernet (copper) ports quantity
24
Console port
USB
Security
Security algorithms
802.1x RADIUSAESEAP
IGMP snooping
Yes
Access Control List (ACL)
Yes
IGMP proxy
Yes
DHCP features
DHCP relayDHCP serverDHCP snooping
Multicast features
Multicast support
Yes
Certificates
Certification
RoHS WEEE
Memory
Internal memory
1024 MB
Flash memory
1024 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Certification
RoHS WEEE
Rack mounting
Yes
Indication
LED indicators
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
5 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)
Weight & dimensions
Width
17.3" (440 mm)
Depth
15.5" (393.7 mm)
Height
1.72" (43.7 mm)
Ruckus ICX 7250-24 - Switch - L3 - managed - 24 x 10/100/1000 + 6 x 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+ - front and side to back - rack-mountable
| Length | 11 in |
| Width | 17.3 in |
| Height | 1.7 in |
| Weight | 1.000000 lbs |
