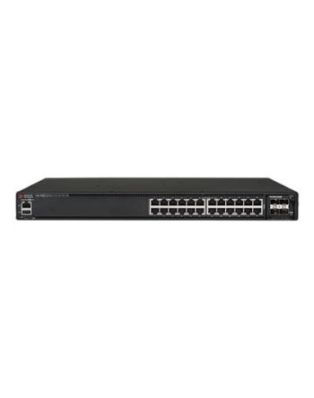

Ruckus ICX 7450-24 - Switch - L3 - managed - 24 x 10/100/1000 - rack-mountable
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
USB 2.0 ports quantity
2
Console port
USB
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Data transmission
Number of VLANs
4096
Jumbo frames
9216
MAC address table
32000 entries
Switching capacity
288 Gbit/s
Number of trunks
124
Number of queues
8
Jumbo frames support
Yes
Performance
Stackable
Yes
Expansion module support
Yes
Physical stacking (units)
12
Noise level
46 dB
Mean time between failures (MTBF)
399973 h
Technical details
Expansion module support
Yes
Physical stacking (units)
12
Form factor
1U
Product colour
Black
Stackable
Yes
Noise level
46 dB
Mean time between failures (MTBF)
399973 h
Rack mounting
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Security algorithms
802.1x RADIUSAESEAPSSHSSH-2
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3 TFTP TELNET Bootp HTTPS
Supported network protocols
IPv4 / IPv6
Design
DIN rail mounting
No
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
63 W
Redundant power supply (RPS) support
Yes
Number of power supply units
2
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)
Heat dissipation
235 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
15.5" (393.7 mm)
Height
1.72" (43.7 mm)
Weight
14.1 lbs (6.4 kg)
Ruckus ICX 7450-24 - Switch - L3 - managed - 24 x 10/100/1000 - rack-mountable
| Length | 39.37 in |
| Width | 44.00 in |
| Height | 4.37 in |
| Weight | 6.400000 lbs |
