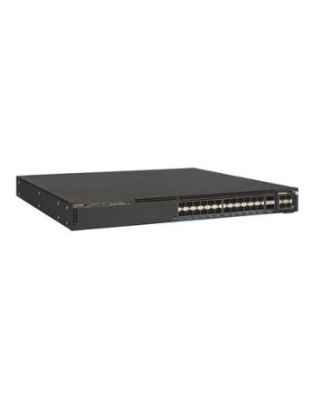

Ruckus ICX 7550-24F - Switch - L3 - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ - rack-mountable
In Stock
|
SPECIFICATIONS
Product Description
Ruckus ICX 7550-24F - switch - 24 ports - managed - rack-mountable
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+
Jumbo Frame Support
12288 bytes
Routing Protocol
RIP-1 RIP-2 static IPv4 routing static IPv6 routing ECMP
Remote Management Protocol
SNMP 1 SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH-2 CLI
Power Redundancy
Yes
Dimensions (WxDxH)
17.3 in x 16 in x 1.7 in
Weight
13.32 lbs
General
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+
Jumbo Frame Support
12288 bytes
Max Units In A Stack
12
Routing Protocol
RIP-1 RIP-2 static IPv4 routing static IPv6 routing ECMP
Remote Management Protocol
SNMP 1 SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH-2 CLI
Encryption Algorithm
AES
Authentication Method
RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2)
RAM
4 GB
Flash Memory
4 GB
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x expansion slot
Power
Power Device
Internal power supply - hot-plug
Installed Qty
0 (installed) / 2 (max)
Power Redundancy
Yes
Power Redundancy Scheme
1+1 (with optional power supply)
Miscellaneous
MTBF
853073 hours
Dimensions & Weight
Width
17.3 in
Depth
16 in
Height
1.7 in
Weight
13.32 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95% (non-condensing)
Ruckus ICX 7550-24F - Switch - L3 - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ - rack-mountable
| Length | 40.64 in |
| Width | 43.94 in |
| Height | 4.32 in |
| Weight | 6.040000 lbs |
