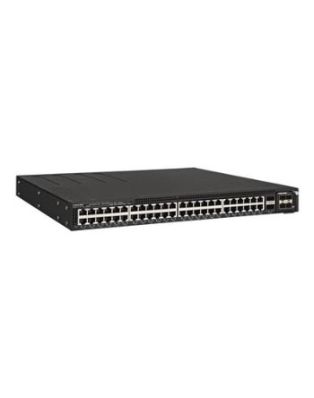

Ruckus ICX 7550-48-E2 - Switch - L3 - managed - 48 x 10/100/1000 + 2 x 40 Gigabit QSFP+ (uplink/stacking) - front to back airflow - rack-mountable - AC 100 - 240 V
In Stock
|
SPECIFICATIONS
Product Description
Ruckus ICX 7550-48-E2 - switch - 48 ports - managed - rack-mountable
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
Gigabit Ethernet
Jumbo Frame Support
12288 bytes
Remote Management Protocol
SNMP 1 SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH-2 CLI
Power
AC 100 - 240 V (50 - 60 Hz)
Power Redundancy
Yes
Dimensions (WxDxH)
17.3 in x 16 in x 1.7 in
Weight
13.89 lbs
General
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 2 x 40 Gigabit QSFP+ (uplink/stacking)
Jumbo Frame Support
12288 bytes
Max Units In A Stack
12
Remote Management Protocol
SNMP 1 SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH-2 CLI
Encryption Algorithm
AES
Authentication Method
RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2)
RAM
4 GB
Flash Memory
4 GB
Power
Power Device
Internal power supply - hot-plug
Installed Qty
2 (installed) / 2 (max)
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Power Provided
400 Watt
Voltage Required
AC 100 - 240 V (50 - 60 Hz)
Power Consumption Operational
65 Watt
Miscellaneous
MTBF
612791 hours
Dimensions & Weight
Width
17.3 in
Depth
16 in
Height
1.7 in
Weight
13.89 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95% (non-condensing)
Ruckus ICX 7550-48-E2 - Switch - L3 - managed - 48 x 10/100/1000 + 2 x 40 Gigabit QSFP+ (uplink/stacking) - front to back airflow - rack-mountable - AC 100 - 240 V
| Length | 40.64 in |
| Width | 43.94 in |
| Height | 4.32 in |
| Weight | 6.300000 lbs |
