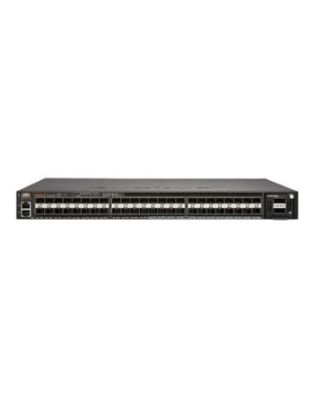

Ruckus ICX 7650-48F - Switch - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP - front to back airflow - rack-mountable
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
IGMP proxy
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Data transmission
Number of VLANs
4096
Jumbo frames
9216
Packet buffer memory
8 MB
MAC address table
80000 entries
Switching capacity
1128 Gbit/s
Number of trunks
16
Jumbo frames support
Yes
Forwarding rate
839 Mpps
Performance
Packet buffer memory
8 MB
Stackable
Yes
Physical stacking (units)
12
Noise level
51.3 dB
Mean time between failures (MTBF)
243130 h
Internal memory
4096 MB
Flash memory
16384 MB
Technical details
Physical stacking (units)
12
Form factor
1U
Product colour
Black
Stackable
Yes
Noise level
51.3 dB
Mean time between failures (MTBF)
243130 h
Rack mounting
Yes
Ports & interfaces
QSFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports type
None
Installed SFP modules quantity
24
Installed SFP+ modules quantity
24
Console port
USB
Security
Security algorithms
802.1x RADIUSAESEAP
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
IGMP proxy
Yes
DHCP features
DHCP relayDHCP serverDHCP snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3 TFTP TELNET Bootp HTTPS
Supported network protocols
IPv4 / IPv6
Memory
Packet buffer memory
8 MB
Internal memory
4096 MB
Flash memory
16384 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power supply included
No
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
82 W
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)
Heat dissipation
281 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
16" (406 mm)
Height
1.73" (44 mm)
Weight
16.8 lbs (7.6 kg)
Ruckus ICX 7650-48F - Switch - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP - front to back airflow - rack-mountable
Length | 40.60 in |
Width | 44.00 in |
Height | 4.40 in |
Weight | 7.620000 lbs |
