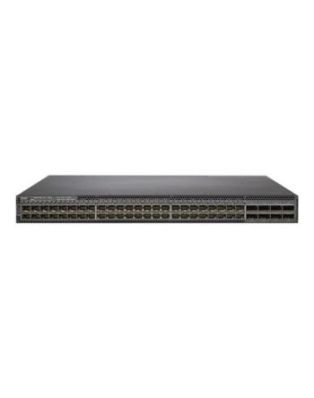

Ruckus ICX 7850-48F - Switch - L3 - managed - 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28 - front to back airflow - rack-mountable
In Stock
|
SPECIFICATIONS
Product Description
Ruckus ICX 7850-48F - switch - 48 ports - managed - rack-mountable
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
25 Gigabit Ethernet
MAC Address Table Size
32K entries
Jumbo Frame Support
9216 bytes
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Dimensions (WxDxH)
17.3 in x 17.5 in x 1.7 in
Weight
19.4 lbs
General
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
25 Gigabit Ethernet
MAC Address Table Size
32K entries
Jumbo Frame Support
9216 bytes
Encryption Algorithm
AES
Authentication Method
RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2)
RAM
4 GB
Flash Memory
32 GB
Power
Power Device
Internal power supply - hot-plug
Installed Qty
2 (installed) / 2 (max)
Power Redundancy
Yes
Power Redundancy Scheme
1+1 (with optional power supply)
Power Provided
650 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
MTBF
457244 hours
Dimensions & Weight
Width
17.3 in
Depth
17.5 in
Height
1.7 in
Weight
19.4 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
104 °F
Humidity Range Storage
10 - 90% (non-condensing)
Ruckus ICX 7850-48F - Switch - L3 - managed - 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28 - front to back airflow - rack-mountable
Length | 44.45 in |
Width | 43.94 in |
Height | 4.32 in |
Weight | 8.800000 lbs |
