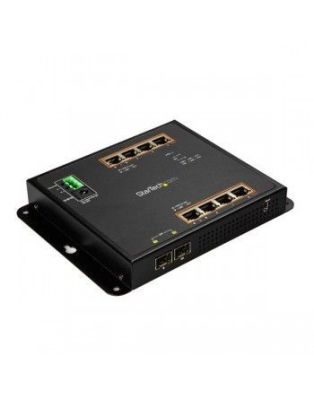

StarTech 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
In Stock
|
Ports & interfaces
Terminal block port
Yes
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Virtual LAN features
Virtual LAN features
Tagged VLAN
Power
Input voltage
12 - 48 V
Power plug type
Type M
Input current
1 A
Technical details
Product colour
Black
Mean time between failures (MTBF)
100000 h
Housing material
Steel
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Tagged VLAN
Data transmission
Store-and-forward
Yes
Security
Access Control List (ACL)
Yes
Certificates
Certification
CE- FCC- RoHS
Design
Wall mountable
Yes
International Protection (IP) code
IP30
Product colour
Black
LED indicators
Activity- Link
Housing material
Steel
Certification
CE- FCC- RoHS
Performance
Maximum data transfer rate
2000 Mbit/s
Maximum cable length
100 m
Buffer size
512 KB
Mean time between failures (MTBF)
100000 h
Indication
LED indicators
Activity- Link
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 90 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
178 mm
Depth
134 mm
Height
25 mm
Weight
618 g
Packaging data
Terminal block included
Yes
Quick start guide
Yes
Package width
170 mm
Package depth
300 mm
Package height
90 mm
Package weight
932 g
Other features
Terminal block port
Yes
Input voltage
12 - 48 V
Packaging content
Terminal block included
Yes
Quick start guide
Yes
StarTech 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
| Weight | 0.930000 lbs |
