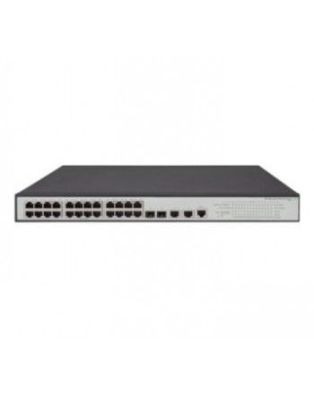

HPE JG962A OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)
In Stock
|
Specifications
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3afIEEE 802.3atIEEE 802.3u
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
1.5 MB
Virtual stacking (units)
4
Memory type
SDRAM
Internal memory
1024 MB
Flash memory
128 MB
Technical details
Virtual stacking (units)
4
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
2
Console port
RJ-45
Data transmission
Throughput
95.2 Mpps
Latency (10-100 Mbps)
5 µs
Latency (1 Gbps)
5 µs
Latency (10 Gbps)
1.5 µs
Packet buffer memory
1.5 MB
MAC address table
16384 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM
Internal memory
1024 MB
Flash memory
128 MB
Design
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Power
Power consumption (max)
425 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
360 mm
Height
44 mm
Weight
6 kg
HPE JG962A OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)
| Length | 36.00 in |
| Width | 44.00 in |
| Height | 4.40 in |
| Weight | 6.000000 lbs |
