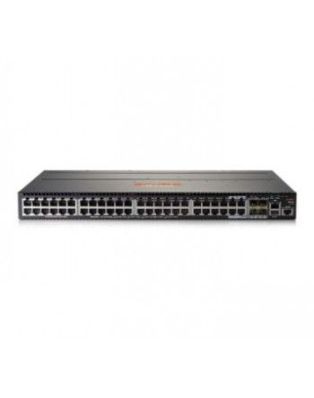

JL321A HP ARUBA 2930M 48G 1-SLOT - SWITCH - 48 PORTS - MANAGED - RACK-MOUNTABLE
In Stock
|
Specifications
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
44
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Network
IGMP snooping
Yes
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
12.38 MB
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Built-in processor
Yes
Technical details
Form factor
1U
Product colour
Gray
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Data transmission
Throughput
112 Mpps
Latency (10-100 Mbps)
11.8 ‚µs
Latency (1 Gbps)
3.1 ‚µs
Latency (10 Gbps)
3.4 ‚µs
Packet buffer memory
12.38 MB
MAC address table
32768 entries
Switching capacity
176 Gbit/s
Security
Authentication
MAC-based authenticationWeb-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
12.38 MB
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Design
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
111 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 ‚°C
Operating temperature (T-T)
0 - 55 ‚°C
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
185 BTU/h
Weight & dimensions
Width
442.5 mm
Depth
324.3 mm
Height
43.9 mm
Weight
4.6 kg
JL321A HP ARUBA 2930M 48G 1-SLOT - SWITCH - 48 PORTS - MANAGED - RACK-MOUNTABLE
| Length | 32.43 in |
| Width | 44.25 in |
| Height | 4.39 in |
| Weight | 4.600000 lbs |
