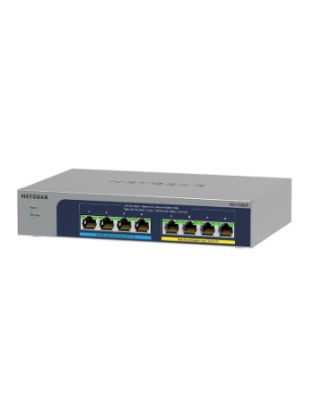

Netgear MS108UP-100EUS 8 Port POE++ MULTIGIG UM Switch
In Stock
|
Virtual LAN features
VLAN support
Yes
Number of VLANs
64
Data transmission
Number of VLANs
64
Packet forwarding rate (1 Gbps)
1488000 pps
Jumbo frames
12000
Latency (1 Gbps)
3.593 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
40 Gbit/s
Jumbo frames support
Yes
Performance
Packet buffer memory
1.5 MB
Mean time between failures (MTBF)
373643.7 h
Fanless
Yes
Technical details
Mean time between failures (MTBF)
373643.7 h
Housing material
Metal
Rack mounting
No
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8
Network
Auto-sensing
Yes
Networking standards
IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3bt-IEEE 802.3u-IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Number of VLANs
64
Ethernet LAN data rates
100-1000-2500 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Half duplex
Yes
Certificates
Electromagnetic compatibility
CE- FCC part 15 Class B- ISED- VCCI- KC- CCC- BSMI- RCM
Certification
CB- CSA- CCC- BSMI- RCM
Memory
Packet buffer memory
1.5 MB
Design
Wall mountable
Yes
LED indicators
Activity- Link- PoE- Power
Housing material
Metal
Electromagnetic compatibility
CE- FCC part 15 Class B- ISED- VCCI- KC- CCC- BSMI- RCM
Certification
CB- CSA- CCC- BSMI- RCM
Rack mounting
No
Indication
LED indicators
Activity- Link- PoE- Power
Power
Power supply included
Yes
Input current
4.7 A
DC input voltage
54 V
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
923.49 BTU/h
Weight & dimensions
Width
210 mm
Depth
140 mm
Height
40 mm
Weight
900 g
Other features
Ethernet LAN data rates
100-1000-2500 Mbit/s
Netgear MS108UP-100EUS 8 Port POE++ MULTIGIG UM Switch
