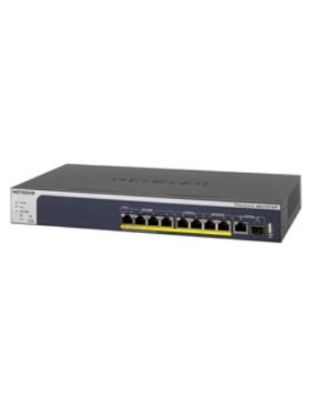

Netgear MS510TXPP-100EUS Managed L2/L3/L4 10G Ethernet Power over (PoE)
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3/L4
Network
IGMP snooping
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Data transmission
Multicast MAC address table
512 entries
Number of VLANs
256
Jumbo frames
10000
Latency (10 Gbps)
2.36 µs
Number of static routes
32
Packet buffer memory
3 MB
MAC address table
16000 entries
Switching capacity
78 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Performance
Packet buffer memory
3 MB
Auto-negotiation
Yes
Processor frequency
800 MHz
Noise level
28.8 dB
Mean time between failures (MTBF)
376434 h
Built-in processor
Yes
Power
Power connector
DC-in jack
Power consumption (max)
234.31 W
Power supply included
No
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
19.39 W
Power source
AC
Technical details
Product colour
Grey
Processor frequency
800 MHz
Noise level
28.8 dB
Mean time between failures (MTBF)
376434 h
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
8
Gigabit Ethernet (copper) ports quantity
4
USB 2.0 ports quantity
1
Console port
RJ-45
Power connector
DC-in jack
2.5G Ethernet (copper) ports quantity
2
10G Ethernet (copper) ports quantity
1
Security
Access Control List (ACL) rules
164
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast MAC address table
512 entries
Multicast support
Yes
Memory
Packet buffer memory
3 MB
Design
Product colour
Grey
LED indicators
Yes
Rack mounting
Yes
Number of fans
1 fan(s)
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
180 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
799.5 BTU/h
Weight & dimensions
Width
440 mm
Depth
204 mm
Height
43 mm
Weight
2.61 kg
Netgear MS510TXPP-100EUS Managed L2/L3/L4 10G Ethernet Power over (PoE)
| Length | 20.40 in |
| Width | 44.00 in |
| Height | 4.30 in |
| Weight | 2.610000 lbs |
