Technical details
Product colour
Black
Rack mounting
No
Hot-Plug support
Yes
Push button
Yes
On Screen Display (OSD)
No
Number of users
1 user(s)
LED indicators
Yes
Hot keys
Yes
IP control
No
Audio support
Yes
USB hub
Yes
Sustainability certificates
RoHS
Video
HD type
4K Ultra HD
Maximum resolution
3840 x 2400 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- USB A
USB connector type
USB Type-A
Number of microphone inputs
3
DisplayPorts quantity
6
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
USB hub
Yes
Network
Ethernet LAN
No
Performance
DDC2B support
Yes
Daisy chain
No
HD type
4K Ultra HD
Hot-Plug support
Yes
Maximum resolution
3840 x 2400 pixels
Number of users
1 user(s)
Audio channels
7.1
Design
Product colour
Black
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Certification
CE- FCC- REACH- TAA
Housing material
Steel
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input current
0.8 A
Output current
1.5 A
Power plug type
Type M
Compatible power plug types
AU-EU-UK-US
Output voltage
12 V
AC input voltage
110 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
161 mm
Depth
100 mm
Height
57.5 mm
Weight
734 g
Package width
249 mm
Package depth
187 mm
Package height
100 mm
Package weight
1.19 kg
Packaging data
Package width
249 mm
Package depth
187 mm
Package height
100 mm
Package weight
1.19 kg
Packaging content
Manual
Yes
Certificates
Certification
CE- FCC- REACH- TAA
Other features
Push button
Yes
Hot keys
Yes
IP control
No
Audio support
Yes

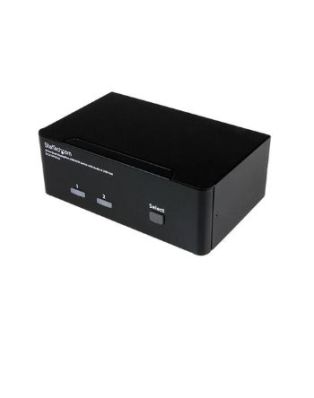

StarTech 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
Weight | 1.000000 lbs |
