Technical details
Product colour
Black
On Screen Display (OSD)
No
Number of users
1 user(s)
LED indicators
Yes
Hot keys
Yes
IP control
No
Sustainability certificates
RoHS
Video
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
4
Console ports
3.5mm headphone- 3.5mm mic- DVI-I- USB A- VGA (D-Sub)
USB connector type
USB Type-A
Number of microphone inputs
1
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA/DVI-I
Audio connections
Yes
VGA (D-Sub) ports quantity
5
Headphone outputs
1
DVI-I ports quantity
5
DC-in jack
Yes
Performance
Daisy chain
No
Maximum resolution
1920 x 1200 pixels
Number of users
1 user(s)
Design
Mean time between failures (MTBF)
140000 h
Product colour
Black
LED indicators
Yes
Hot keys
Yes
Certification
CE- FCC- UL- REACH
Housing material
Steel
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input current
0.8 A
Output current
1.5 A
Power plug type
Type M
Compatible power plug types
AU-EU-UK-US
Output voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
220 mm
Depth
163 mm
Height
60 mm
Weight
1.3 kg
Package width
295 mm
Package depth
249 mm
Package height
86 mm
Package weight
1.8 kg
Packaging data
Package width
295 mm
Package depth
249 mm
Package height
86 mm
Package weight
1.8 kg
Packaging content
Rubber feet
Yes
Manual
Yes
AC adapter included
Yes
Certificates
Certification
CE- FCC- UL- REACH
Other features
Hot keys
Yes
IP control
No

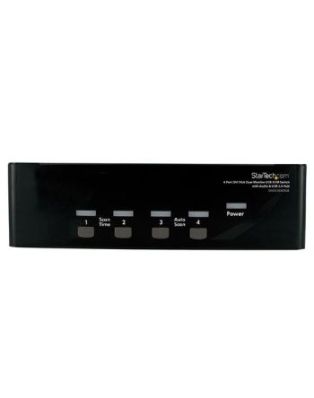

StarTech 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
Length | 16.30 in |
Width | 22.00 in |
Height | 6.00 in |
Weight | 1.300000 lbs |
