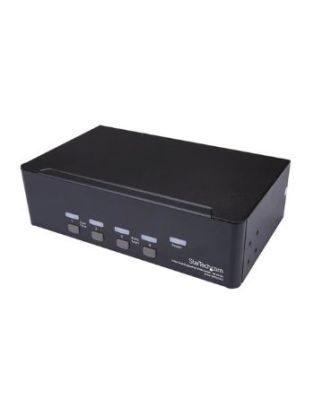

StarTech 4-Port Dual DisplayPort KVM Switch - 4K 60Hz
In Stock
|
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
3-8-15-30 s
LED indicators
Power
Hot keys
Yes
IP control
No
Audio support
Yes
USB hub
Yes
Sustainability certificates
RoHS
Video
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Ports & interfaces
Console USB ports quantity
4
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- USB A
USB connector type
USB Type-A
DisplayPorts quantity
10
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
DC-in jack
Yes
USB hub
Yes
Performance
Daisy chain
No
Data transfer rate (max)
0.5 Gbit/s
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Scan interval
3-8-15-30 s
Design
Mean time between failures (MTBF)
142000 h
Product colour
Black
Rack mounting
Yes
LED indicators
Power
Hot keys
Yes
Certification
CE- FCC- TAA- REACH
Rack capacity
2U
Housing material
Steel
Display
Built-in display
No
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
Compatible power plug types
AU- EU- JP- UK- US
Output voltage
12 V
Power source
AC
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
216 mm
Depth
127 mm
Height
63 mm
Weight
1.2 kg
Package width
243 mm
Package depth
297 mm
Package height
87 mm
Package weight
1.8 kg
Packaging data
Package width
243 mm
Package depth
297 mm
Package height
87 mm
Package weight
1.8 kg
Packaging content
Rubber feet
Yes
Quick installation guide
Yes
Certificates
Certification
CE- FCC- TAA- REACH
Other features
Hot keys
Yes
IP control
No
Audio support
Yes
StarTech 4-Port Dual DisplayPort KVM Switch - 4K 60Hz
| Length | 12.70 in |
| Width | 21.60 in |
| Height | 6.30 in |
| Weight | 1.200000 lbs |
