Technical details
Product colour
Black
Rack mounting
Yes
Plug and Play
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
IP control
No
Audio support
No
Sustainability certificates
RoHS
Video
Maximum resolution
1920 x 1440 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
USB A-VGA (D-Sub)
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Audio connections
No
VGA (D-Sub) ports quantity
9
DC-in jack
Yes
Performance
Daisy chain
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1440 pixels
Design
Mean time between failures (MTBF)
150000 h
Product colour
Black
Rack mounting
Yes
LED indicators
Yes
Certification
CE- FCC- TAA- REACH
Rack capacity
1U
Housing material
Steel
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input current
0.8 A
Output current
1.5 A
Power plug type
Type M
Compatible power plug types
EU-UK-US
Output voltage
12 V
AC input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
540 mm
Depth
180 mm
Height
45 mm
Weight
2.9 kg
Package width
89 mm
Package depth
573 mm
Package height
268 mm
Package weight
3.3 kg
Packaging data
Package width
89 mm
Package depth
573 mm
Package height
268 mm
Package weight
3.3 kg
Packaging content
Rubber feet
Yes
Manual
Yes
AC adapter included
Yes
Certificates
Certification
CE- FCC- TAA- REACH
Other features
Connectivity technology
Wired
Power requirements
110 - 240 AC
Ports quantity
8
Dimensions (WxDxH)
540 x 180 x 45 mm
IP control
No
Audio support
No

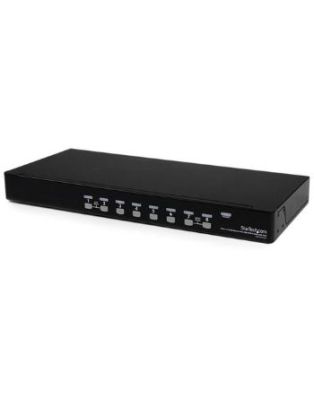

StarTech 8 Port 1U Rackmount USB KVM Switch with OSD
Length | 18.00 in |
Width | 54.00 in |
Height | 4.50 in |
Weight | 2.900000 lbs |
