Hard drive
RAID levels
01510
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU Fan Temperature
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Number of processors supported
2
Motherboard chipset
Intel C621
Compatible processor series
Intel Xeon
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
8
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
8
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Marvell 88E1512
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
1000BASE-T
Ports & interfaces
Number of SATA III connectors
8
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
1
PCI Express slots version
3
Features
PC health monitoring
CPU Fan Temperature
Technical details
Number of storage drives supported
8
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
1.57" (4 cm)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
HDD Network Power
BIOS
BIOS type
EEPROM
BIOS memory size
256 Mbit
Design
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
1.57" (4 cm)
LED indicators
HDD Network Power
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
18 A
DC output current (+12 V)
49 A
Number of main power supplies
1
Power supply
600 W
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
19.6 lbs (8.9 kg)
Height
1.69" (43 mm)
Depth
20" (508 mm)

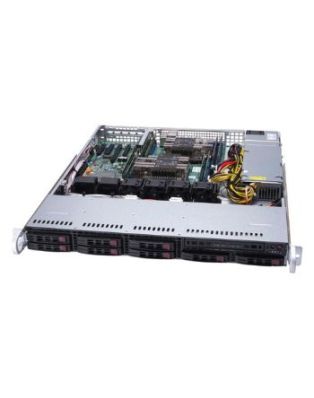

Supermicro SuperServer 1029P-MT
Length | 50.80 in |
Width | 43.70 in |
Height | 4.30 in |
Weight | 8.890000 lbs |
