| SPECIFICATIONS | |
|---|---|
| Product Description | Supermicro SuperServer 5019C-MHN2 - rack-mountable |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA1151 Socket |
| Storage Controller | RAID (SATA 6Gb/s) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 17.2 in x 19 in x 1.7 in |
| Weight | 17.99 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Color | Black |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel C246 |
| RAM | |
| Installed Size | 0 GB / 128 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 4 (empty) |
| Features | Unbuffered |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 5 |
| RAID Level | RAID 0 RAID 1 RAID 5 RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I210-AT |
| Remote Management Protocol | IPMI 2.0 |
| Features | ACPI support KVM over IP support |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 350 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Power Factor Correction | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Dimensions & Weight Details | - 32 lbs |
| Width | 17.2 in |
| Depth | 19 in |
| Height | 1.7 in |
| Weight | 17.99 lbs |

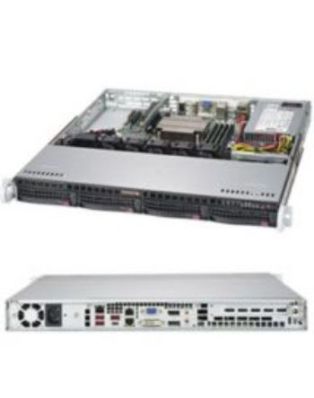

Supermicro SuperServer 5019C-MHN2
| Weight | 14.000000 lbs |
