Hard drive | |
---|---|
Hot-swap HDD bays | Yes |
Processor | |
Built-in processor | No |
System bus type | HyperTransport |
Processor socket | LGA 3647 (Socket P) |
Processor family | Intel® Xeon® |
Number of processors supported | 1 |
Motherboard chipset | Intel C622 |
Memory | |
Supported RDIMM clock speeds | 2133-2400-2666 MHz |
Supported memory types | DDR4-SDRAM |
Number of DIMM slots | 8 |
Maximum RDIMM memory | 256 GB |
Maximum internal memory | 1024 GB |
ECC | Yes |
Storage | |
Number of storage drives supported | 4 |
Supported storage drive interfaces | Serial ATA III |
Hot-swap HDD bays | Yes |
Storage drive sizes supported | 3.5" |
Graphics | |
On-board graphics adapter model | Aspeed AST2500 |
Network | |
Ethernet LAN data rates | 10-100-1000-10000 Mbit/s |
Ethernet LAN | Yes |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
VGA (D-Sub) ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Serial ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 2 |
Expansion slots | |
PCI Express x16 slots | 1 |
PCI Express slots version | 3 |
Technical details | |
Number of storage drives supported | 4 |
Number of fans | 4 fan(s) |
Fan diameter | 4 cm |
Chassis type | Rack (1U) |
Sustainability certificates | RoHS |
Colour | |
Product colour | Black |
BIOS | |
BIOS type | AMI |
BIOS memory size | 32 Mbit |
Design | |
Number of fans | 4 fan(s) |
Fan diameter | 4 cm |
Product colour | Black |
Chassis type | Rack (1U) |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
DC output current (+5 V) | 15 A |
DC output current (+12 V) | 29 A |
Power supply | 350 W |
Operational conditions | |
Storage temperature (T-T) | -40 - 60 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 10 - 35 °C |
Operating relative humidity (H-H) | 8 - 90% |
Weight & dimensions | |
Width | 437 mm |
Weight | 8 kg |
Height | 43 mm |
Depth | 503 mm |

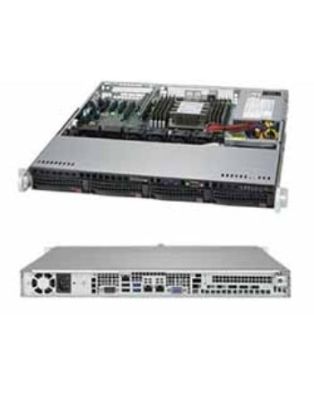

Supermicro SuperServer 5019P-MT
Weight | 1.000000 lbs |
