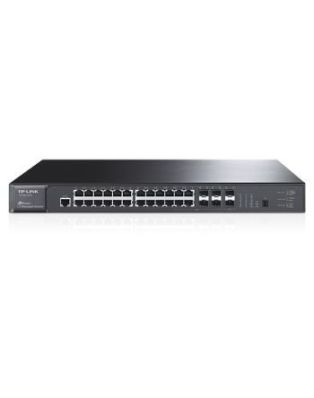

TP-LINK JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
Out of Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-T-100BASE-TX-1000BASE-TX-1000BASE-T
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Console port
RJ-45
Power connector
DC-in jack
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-T-100BASE-TX-1000BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3ae-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Stackable
Yes
Fanless
Yes
Power
Power connector
DC-in jack
Power supply included
Yes
AC input voltage
110 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
53 W
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Optical fiber
Fiber ethernet cabling technology
10GBASE-LR-10GBASE-SR-100BASE-FX
Data transmission
Number of static routes
256
Number of IP interfaces
128
MAC address table
32 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
95.2 Mpps
Security
Security algorithms
802.1x RADIUS-SSH-SSH-2-SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
DHCP features
DHCP client-DHCP server
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP- RMON- DHCP/BOOTP- DHCP Snooping- DHCP Option82- CPU- NDP/NTDP- TFTP- Web- VCT
Certificates
Certification
CE- FCC- RoHS
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Certification
CE- FCC- RoHS
Rack mounting
Yes
Number of fans
4 fan(s)
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
214.96 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Other features
Ethernet LAN data rates
10-100-1000 Mbit/s
TP-LINK JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
