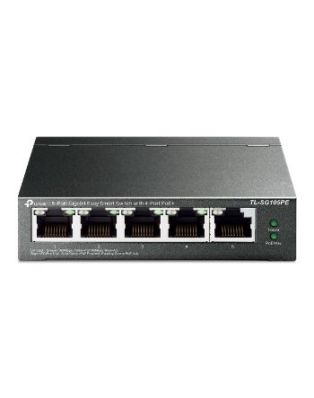

TP-LINK 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
In Stock
|
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-FX-100BASE-TX-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Cable types supported
Cat3-Cat4-Cat5-Cat5e-Cat6
Copper ethernet cabling technology
10BASE-T-100BASE-FX-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1Q-IEEE 802.1p-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x
VLAN support
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
1.5 MB
Auto-negotiation
Yes
Fanless
Yes
Technical details
Product colour
Black
Management features
Switch type
Unmanaged
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Data transmission
Jumbo frames
16000
Packet buffer memory
1.5 MB
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
7.44 Mpps
Security
Loop protection
Yes
IGMP snooping
Yes
Certificates
Certification
FCC- CE- RoHS
Memory
Packet buffer memory
1.5 MB
Design
Product colour
Black
LED indicators
Activity- Link- PoE- Power- Speed- Status
Certification
FCC- CE- RoHS
Indication
LED indicators
Activity- Link- PoE- Power- Speed- Status
Power
Power consumption (max)
75.16 W
Power supply included
Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
65 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
256.3 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging data
User guide
Yes
Packaging content
User guide
Yes
TP-LINK 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
| Weight | 1.000000 lbs |
