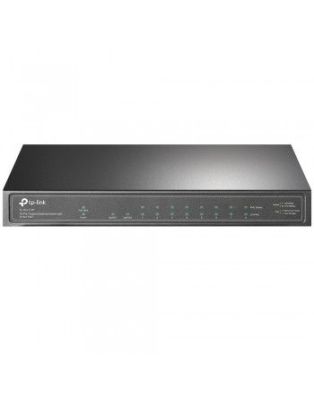

TP-LINK TL-SG1210P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
In Stock
|
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
9
Network
IGMP snooping
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1p-IEEE 802.3af-IEEE 802.3at-IEEE 802.3x
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Auto-negotiation
Yes
Fanless
Yes
Technical details
Product colour
Grey
Housing material
Metal
Management features
Quality of Service (QoS) support
Yes
Optical fiber
Fiber type
Single-mode
Fiber ethernet cabling technology
1000BASE-X
Data transmission
MAC address table
4000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Security
IGMP snooping
Yes
Certificates
Certification
CE- FCC- RoHS
Design
Wall mountable
Yes
Product colour
Grey
LED indicators
Yes
Housing material
Metal
Certification
CE- FCC- RoHS
Indication
LED indicators
Yes
Power
Power consumption (max)
78.13 W
Power supply included
No
Power consumption (typical)
7.11 W
Input current
1.31 A
DC input voltage
53.5 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
63 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
266.42 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging data
Quick start guide
Yes
User guide
Yes
Manual
Yes
Cables included
AC
Packaging content
Quick start guide
Yes
User guide
Yes
Manual
Yes
Cables included
AC
TP-LINK TL-SG1210P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
| Weight | 1.280000 lbs |
