Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
IGMP proxy
Yes
Active link detection
Yes
Networking standards
IEEE 802.11d-IEEE 802.1s-IEEE 802.1w
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Policy-based routing
Yes
Virtual LAN features
VLAN support
Yes
Technical details
Product colour
Black
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/Micro-USB
Data transmission
Number of static routes
48
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Forwarding rate
95.23 Mpps
Security
Loop protection
Yes
IGMP snooping
Yes
IGMP proxy
Yes
DHCP features
DHCP snooping
Multicast features
Multicast support
Yes
Design
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
384 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging data
Quick start guide
Yes
Cables included
LAN (RJ-45)
Other features
Ethernet LAN data rates
10-100-1000 Mbit/s
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)

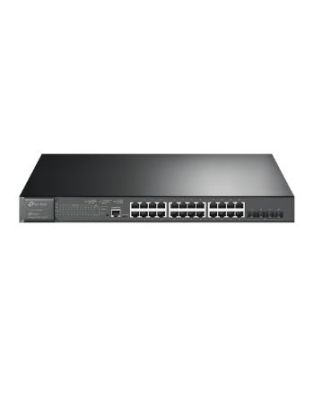

TP-LINK JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
Weight | 1.000000 lbs |
