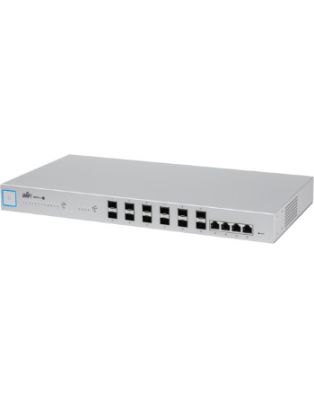

Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch
In Stock
|
Management features
Reset button
Yes
Switch type
Managed
Switch layer
L2
Virtual LAN features
VLAN support
Yes
Power
Input voltage
25 - 16 V
Power connector
DC-in jack
Power consumption (max)
56 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
36 W
Technical details
Form factor
1U
Product colour
Grey
Housing material
Steel
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
12
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
Power connector
DC-in jack
Networking
Cable types supported
Cat6
Networking standards
IEEE 802.1x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
10G support
Yes
Data transmission
Packet forwarding rate (1 Gbps)
238.1 pps
Switching capacity
320 Gbit/s
Jumbo frames support
Yes
Security
Security algorithms
802.1x RADIUS
Certificates
Certification
CE FCC IC ETSI300-019-1.4
Design
Reset button
Yes
Form factor
1U
Product colour
Grey
LED indicators
Yes
Housing material
Steel
Certification
CE FCC IC ETSI300-019-1.4
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
17.4" (443 mm)
Depth
8.7" (221 mm)
Height
1.69" (43 mm)
Weight
5.78 lbs (2.62 kg)
Packaging data
Mounting brackets included
Yes
Package type
Box
Screws included
Yes
Quick start guide
Yes
Cables included
AC
Other features
Input voltage
25 - 16 V
Packaging content
Mounting brackets included
Yes
Screws included
Yes
Quick start guide
Yes
Cables included
AC
Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch
| Length | 22.10 in |
| Width | 44.30 in |
| Height | 4.30 in |
| Weight | 2.620000 lbs |
