Management features
Reset button
Yes
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+/L3
Virtual LAN features
VLAN support
Yes
Technical details
Form factor
1U
Product colour
Black- Silver
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Network
VLAN support
Yes
Port mirroring
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Data transmission
Jumbo frames
9
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Security
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Design
Reset button
Yes
Form factor
1U
Product colour
Black- Silver
LED indicators
PoE
Rack mounting
Yes
Indication
LED indicators
PoE
Power
Power consumption (max)
164.3 W
Power supply included
Yes
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
140 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
319 mm
Depth
208 mm
Height
44 mm
Weight
2.61 kg

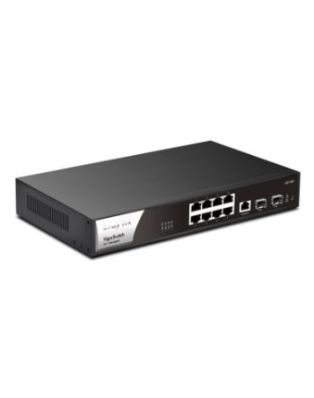

Draytek VIGORSWITCH P2100 8+2 PT GB POE
Length | 20.80 in |
Width | 31.90 in |
Height | 4.40 in |
Weight | 2.610000 lbs |
