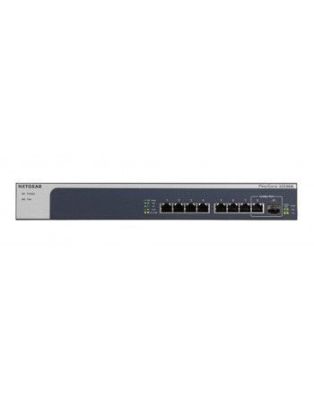

Netgear XS508M Unmanaged 10G Ethernet (100/1000/10000) Grey,Silver
In Stock
|
Power
Power connector
DC-in jack
Power consumption (max)
39 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
21.31 W
Input current
1.5 A
Technical details
Product colour
Grey- Silver
Mean time between failures (MTBF)
1145157 h
Rack mounting
Yes
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
7
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
1
Console port
RJ-45
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ae-IEEE 802.3an-IEEE 802.3aq-IEEE 802.3az-IEEE 802.3bz-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
10G support
Yes
Data transmission
Jumbo frames
9000
MAC address table
2000 entries
Switching capacity
160 Gbit/s
Jumbo frames support
Yes
Certificates
Safety
CE: CB 60950-1- LVD 60950-1- AUS/NZ: AS/NZS 60950-1- USA: UL 60950-1- SNE VA- BSMI
Certification
47 CFR FCC- ICES-003:2016 Issue 6- ANSI C63.4:2014- EN 55032:2012+AC2013- EN 55024:2010- EN 61000-3-2:2014- EN 6100-3-3:2013- AS/NZS CISPR 32:2015- VCCI V-3/2015.04- V-4/2012.4- CNS 13438
Design
Safety
CE: CB 60950-1- LVD 60950-1- AUS/NZ: AS/NZS 60950-1- USA: UL 60950-1- SNE VA- BSMI
Product colour
Grey- Silver
LED indicators
Yes
Certification
47 CFR FCC- ICES-003:2016 Issue 6- ANSI C63.4:2014- EN 55032:2012+AC2013- EN 55024:2010- EN 61000-3-2:2014- EN 6100-3-3:2013- AS/NZS CISPR 32:2015- VCCI V-3/2015.04- V-4/2012.4- CNS 13438
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
1145157 h
Indication
LED indicators
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
147.86 BTU/h
Weight & dimensions
Width
328 mm
Depth
169 mm
Height
43.2 mm
Weight
1.49 kg
Netgear XS508M Unmanaged 10G Ethernet (100/1000/10000) Grey,Silver
| Length | 16.90 in |
| Width | 32.80 in |
| Height | 4.32 in |
| Weight | 1.490000 lbs |
