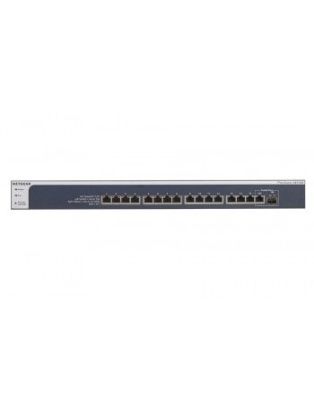

Netgear XS716E Managed L2 10G Ethernet (100/1000/10000) Black 1U
In Stock
|
Management features
Reset button
Yes
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
IGMP snooping
Yes
Full duplex
Yes
VLAN support
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
128
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
128
Virtual LAN features
Port-based VLAN
Data transmission
Number of multicast groups filtered
128
Number of VLANs
128
Jumbo frames
9000
Throughput
238.1 Mpps
Latency (10-100 Mbps)
7.14 µs
Latency (1 Gbps)
2.68 µs
Latency (10 Gbps)
3.43 µs
Packet buffer memory
2 MB
MAC address table
16000 entries
Switching capacity
320 Gbit/s
Jumbo frames support
Yes
Performance
Packet buffer memory
2 MB
Noise level
33.9 dB
Mean time between failures (MTBF)
348257 h
Power
Power connector
DC-in jack
Power consumption (max)
62.7 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
20.9 W
Input current
2.5 A
Technical details
Form factor
1U
Product colour
Black
Noise level
33.9 dB
Mean time between failures (MTBF)
348257 h
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
Power connector
DC-in jack
Security
IGMP snooping
Yes
DHCP features
DHCP client
Multicast features
Number of multicast groups filtered
128
Multicast support
Yes
Memory
Packet buffer memory
2 MB
Design
Reset button
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Heat dissipation
21440 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
8.03" (204 mm)
Height
1.69" (43 mm)
Weight
7.05 lbs (3.2 kg)
Netgear XS716E Managed L2 10G Ethernet (100/1000/10000) Black 1U
| Length | 20.40 in |
| Width | 44.00 in |
| Height | 4.30 in |
| Weight | 3.200000 lbs |
