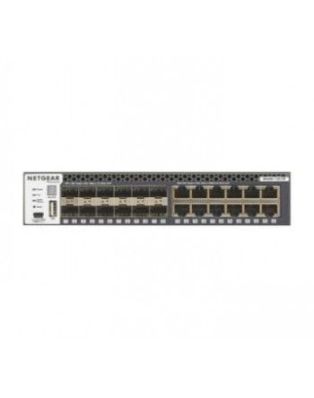

Netgear M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) Black 1U
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Networking
IGMP snooping
Yes
Auto-sensing
Yes
Networking standards
IEEE 802.3adIEEE 802.3az
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
Virtual LAN features
Private VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN
Data transmission
Number of multicast groups filtered
4000
Number of VLANs
4000
Jumbo frames
9000
Number of static routes
64
Packet buffer memory
32 MB
MAC address table
16000 entries
Switching capacity
480 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
357 Mpps
Optical fiber
Fiber optic connector
SFP+
Fiber ethernet cabling technology
10GBASE-LR10GBASE-LRM10GBASE-SR
Performance
Packet buffer memory
32 MB
Stackable
Yes
Auto-negotiation
Yes
Processor frequency
800 MHz
Noise level
36.9 dB
Mean time between failures (MTBF)
192898 h
Internal memory
1024 MB
Flash memory
256 MB
Built-in processor
Yes
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Processor frequency
800 MHz
Noise level
36.9 dB
Mean time between failures (MTBF)
192898 h
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
12
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
USB 2.0 ports quantity
1
Fiber optic connector
SFP+
Security
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Security algorithms
HTTPSSNMPSSH
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP serverDHCP client
Multicast features
Number of multicast groups filtered
4000
Multicast support
Yes
Certificates
Safety
CSA 22.2 #950 UL 1950)/cUL IEC 950/EN 60950
Memory
Packet buffer memory
32 MB
Internal memory
1024 MB
Flash memory
256 MB
Design
Safety
CSA 22.2 #950 UL 1950)/cUL IEC 950/EN 60950
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
ActivityPowerSpeed
Rack mounting
Yes
Indication
LED indicators
ActivityPowerSpeed
Power
Power consumption (max)
97 W
Power supply included
Yes
AC input voltage
110 - 230 V
Number of power supply units
1
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 118110.2" (0 - 3000 m)
Heat dissipation
36775 BTU/h
Weight & dimensions
Width
8.35" (212 mm)
Depth
13.6" (345 mm)
Height
1.73" (44 mm)
Weight
8.14 lbs (3.69 kg)
Packaging data
Rubber feet
Yes
Rack mount kit
Yes
Resource CD
Yes
User guide
Yes
Cables included
ACLAN (RJ-45)Mini-USB
Packaging content
Rubber feet
Yes
Rack mount kit
Yes
Resource CD
Yes
User guide
Yes
Cables included
ACLAN (RJ-45)Mini-USB
Netgear M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) Black 1U
| Length | 34.50 in |
| Width | 21.20 in |
| Height | 4.40 in |
| Weight | 3.690000 lbs |
