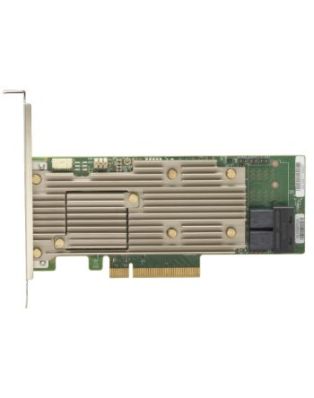

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s
In Stock
|
Ports & interfaces
Supported storage drive interfaces
SAS- Serial ATA III
External SAS ports
8
Host interface
PCI Express x8
PCI Express slots version
3.0
PCI Card form factor
Full-height (low-profile)
Internal mini-SAS HD ports
2
Performance
RAID levels
0-1-10-5-50-6-60
SSD support
Yes
Chipset
LSI SAS3508
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Number of devices supported
8
Data transfer rate
12000 Gbit/s
Certification
FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE
Hot-swap
Yes
Data transmission
Data transfer rate
12000 Gbit/s
Technical details
RAID levels
0-1-10-5-50-6-60
SSD support
Yes
Chipset
LSI SAS3508
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Number of devices supported
8
Compatible operating systems
Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7VMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Hot-swap
Yes
Certificates
Certification
FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE
System requirements
Server operating systems supported
Windows Server 2012 R2-Windows Server 2016
Linux operating systems supported
SUSE Linux Enterprise Desktop 11-SUSE Linux Enterprise Desktop 12
Compatible operating systems
Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7VMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Operational conditions
Operating temperature (T-T)
10 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 95%
Other features
PCI Card form factor
Full-height (low-profile)
Compatible operating systems
Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7VMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s
| Weight | 0.380000 lbs |
