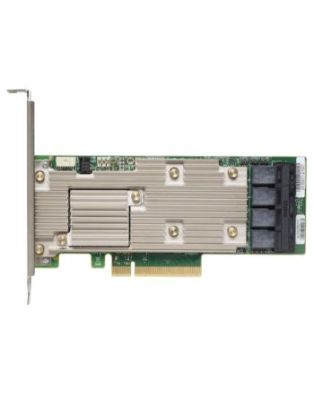

Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
In Stock
|
Ports & interfaces
Supported storage drive interfaces
SAS-Serial ATA III
Host interface
PCI Express x8
PCI Express slots version
3.0
PCI Card form factor
Full-height (low-profile)
Internal mini-SAS HD ports
4
Memory
Internal memory
4000 MB
Performance
RAID levels
0-1-10-5-50-6-60
Internal memory
4000 MB
SSD support
Yes
Chipset
LSI SAS3516
Processor family
LSI
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Number of devices supported
16
Data transfer rate
12000 Gbit/s
Certification
FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE
Built-in processor
Yes
Hot-swap
Yes
Compatible products
ST550- SR550- SR570- SR590- SR630- SR650- SR850- SR860- SR950
Data transmission
Data transfer rate
12000 Gbit/s
Technical details
RAID levels
0-1-10-5-50-6-60
SSD support
Yes
Chipset
LSI SAS3516
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Number of devices supported
16
Compatible operating systems
Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise Server 11 with Xen for AMD64/EM64TSUSE Linux Enterprise Server 12SUSE Linux Enterprise Server 12 with XENVMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Hot-swap
Yes
Processor
Processor family
LSI
Built-in processor
Yes
Certificates
Certification
FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE
System requirements
Compatible operating systems
Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise Server 11 with Xen for AMD64/EM64TSUSE Linux Enterprise Server 12SUSE Linux Enterprise Server 12 with XENVMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Operational conditions
Operating temperature (T-T)
10 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 95%
Other features
PCI Card form factor
Full-height (low-profile)
Compatible operating systems
Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise Server 11 with Xen for AMD64/EM64TSUSE Linux Enterprise Server 12SUSE Linux Enterprise Server 12 with XENVMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
| Weight | 0.390000 lbs |
