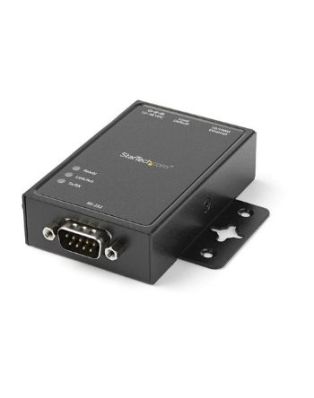

StarTech 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum
In Stock
|
| Technical details | |
|---|---|
| Stop bits | 1-1.5-2 |
| Flow Control type | N- RTS/CTS |
| Data bits | 5-6-7-8 |
| Package width | 146 mm |
| Package length | 17.6 cm |
| Package height | 62 mm |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| RS-232 signals | Rx-Tx |
| Networking standards | IEEE 802.3u |
| Flow control support | Yes |
| Ethernet LAN data rates | 10-100 Mbit/s |
| Baud rate | 460.8 Kbit/s |
| Parity bit | Even- N- Odd |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Weight & dimensions | |
| Package weight | 416 g |
| Package width | 146 mm |
| Package length | 17.6 cm |
| Package height | 62 mm |
| Weight | 92 g |
| Dimensions (WxDxH) | 53 x 86 x 23 mm |
| Power | |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Power plug type | Type M |
| Compatible power plug types | AU-EU-UK-US |
| Power consumption | 360 mA |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Protocols | |
| Supported network protocols | DHCP- TCP/IP- UDP- HTTP- ICMP- ARP- Telnet |
| Certificates | |
| Certification | CE- FCC- TAA- REACH |
| Indication | |
| LED indicators | Activity- Link- Ready |
| Link/Act LED | Yes |
| Software | |
| Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 2000-Windows 2000 Professional-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
| Packaging content | |
| User guide | Yes |
| AC adapter included | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Certification | CE- FCC- TAA- REACH |
StarTech 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum
| Weight | 0.420000 lbs |
