Specifications
Processor
Processor threads
40
Processor cache type
L3
Processor cache
27.5 MB
Processor frequency
2.1 GHz
Number of processors installed
2
Processor model
6230
Processor boost frequency
3.9 GHz
Processor cores
20
Motherboard chipset
Intel‚ C621
Maximum number of SMP processors
4
Processor family
Intel‚ Xeon‚ Gold
Memory
Internal memory
128 GB
Memory layout (slots x size)
4 x 32 GB
Memory slots
48 DIMM
Memory clock speed
2933 MHz
Maximum internal memory
1536 GB
Internal memory type
DDR4-SDRAM
Storage
RAID support
Yes
RAID levels
0156105060
Optical drive type
No
Number of HDDs supported
8
Maximum storage capacity
58 TB
Hot-Plug support
Yes
HDD size
2.5"
HDD interface
Serial ATASerial Attached SCSI (SAS)
Network
LAN controller
HPE FlexFabric 533FLR-T
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Optical drive
Optical drive type
No
Design
Redundant fans support
Yes
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (2U)
Product colour
BlackMetallic
Remote administration
iLO 5 ASIC
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Operating system installed
No
Software
Compatible operating systems
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
VMware ESXi 6.0 U3
VMware ESXi 6.5 U2
VMware ESXi 6.7 U1
Red Hat Enterprise Linux (RHEL) 7.6 & 8.0
SUSE Linux Enterprise Server (SLES) 12 SP4 12 SP3 & 15 SP1
CentOS 7.6
Operating system installed
No
Power
Number of redundant power supplies installed
2
Redundant power supply (RPS) support
Yes
Power supply
1600 W
Certificates
Energy Star certified
No
Management features
Remote administration
iLO 5 ASIC
Technical details
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Redundant fans support
Yes
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
10 Gigabit Ethernet
Chassis type
Rack (2U)
Weight & dimensions
Width
17.5" (445.5 mm)
Weight
75.2 lbs (34.1 kg)
Height
3.44" (87.5 mm)
Depth
29.7" (754.7 mm)

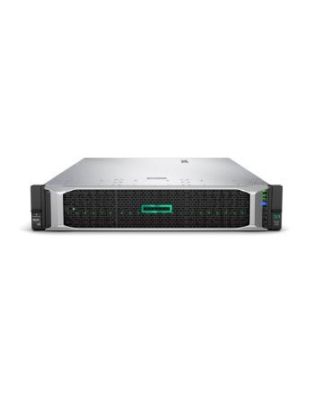

HPE ProLiant P02873-B21 DL560 Gen10 Server
| Length | 75.47 in |
| Width | 44.55 in |
| Height | 8.75 in |
| Weight | 34.110000 lbs |
