Specifications
Processor
Processor cache
24.75 MB
Processor frequency
3.1 GHz
Number of processors installed
4
Processor model
6254
Processor boost frequency
4 GHz
Processor manufacturer
Intel
Motherboard chipset
Intel‚ C621
Maximum number of SMP processors
4
Processor family
Intel‚ Xeon‚ Gold
Memory
Internal memory
256 GB
Memory layout (slots x size)
8 x 32 GB
Memory slots
48 DIMM
Memory clock speed
2933 MHz
Maximum internal memory
3072 GB
Internal memory type
DDR4-SDRAM
Storage
Supported HDD sizes
2.5"
RAID support
Yes
RAID levels
011 ADM5610 ADM105060
Optical drive type
No
Number of HDDs supported
8
Maximum storage capacity
58 TB
Hot-Plug support
Yes
HDD interface
Serial ATASerial Attached SCSI (SAS)
Graphics
Maximum graphics adapter memory
16 MB
On-board graphics adapter
Yes
Network
LAN controller
HPE FlexFabric 533FLR-T
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Optical drive
Optical drive type
No
Design
Redundant fans support
Yes
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (2U)
Remote administration
iLO 5 ASIC
Operating system installed
No
Software
Compatible operating systems
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
VMware ESXi 6.0 U3
VMware ESXi 6.5 U2
VMware ESXi 6.7 U1
Red Hat Enterprise Linux (RHEL) 7.6 & 8.0
SUSE Linux Enterprise Server (SLES) 12 SP4 12 SP3 & 15 SP1
CentOS 7.6
Operating system installed
No
Power
Number of redundant power supplies installed
2
Redundant power supply (RPS) support
Yes
Power supply
1600 W
Certificates
Energy Star certified
No
Management features
Remote administration
iLO 5 ASIC
Technical details
Supported HDD sizes
2.5"
Redundant fans support
Yes
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
10 Gigabit Ethernet
Chassis type
Rack (2U)
Weight & dimensions
Width
17.5" (445.5 mm)
Weight
75.2 lbs (34.1 kg)
Height
3.44" (87.5 mm)
Depth
29.7" (754.7 mm)

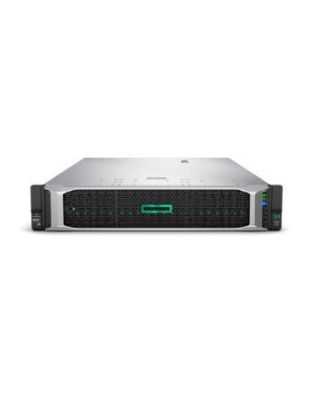

HPE ProLiant P02874-B21 DL560 Gen10 Server
| Length | 75.47 in |
| Width | 44.55 in |
| Height | 8.75 in |
| Weight | 34.110000 lbs |
