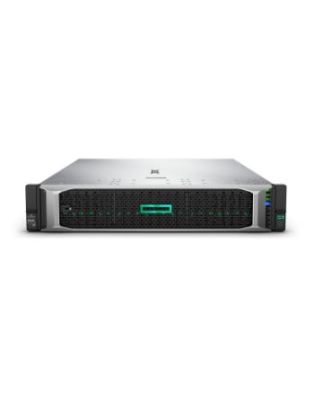

HPE P20182-B21 ProLiant DL380 Gen10 server 311.68 TB 1.9 GHz 16 GB Rack (2U) Intel Xeon Bronze 500 W DDR4-SDRAM
In Stock
|
Specifications
Processor
Processor threads
6
Processor cache type
L3
Processor cache
8.25 MB
Processor frequency
1.9 GHz
Number of processors installed
1
Processor model
3204
Processor cores
6
Motherboard chipset
Intel‚ C621
Maximum number of SMP processors
2
Processor family
Intel Xeon Bronze
Memory
Internal memory
16 GB
Memory layout (slots x size)
1 x 16 GB
Memory slots
24 DIMM
Memory clock speed
2933 MHz
Maximum internal memory
1536 GB
Internal memory type
DDR4-SDRAM
Storage
RAID support
Yes
RAID levels
01510
Optical drive type
No
Number of HDDs supported
8
Maximum storage capacity
72 TB
Hot-Plug support
Yes
HDD size
2.5"
HDD interface
Serial ATA
Graphics
Maximum graphics adapter memory
16 MB
On-board graphics adapter
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (2U)
Product colour
BlackSilver
Remote administration
iLO 5 ASIC
Operating system installed
No
Software
Compatible operating systems
Windows Server 2019: Essentials Standard Datacenter
Windows Server 2016: Essentials Standard Datacenter
Windows Server 2012 R2: Essentials Standard Datacenter
Microsoft Hyper-V Server: 2012 R2 2016 & 2019
VMware vSphere 6.0 U3 6.5 U2 & 6.7 U1
ClearVM: 7.6 & 8.0
Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase
SUSE Linux Enterprise Server (SLES) 12 SP4 and 15 SP1 (incl. Xen)
Operating system installed
No
Power
Redundant power supply (RPS) support
Yes
Power supply
500 W
Certificates
Energy Star certified
Yes
Management features
Remote administration
iLO 5 ASIC
Technical details
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
Gigabit Ethernet
Chassis type
Rack (2U)
Weight & dimensions
Width
17.5" (445.5 mm)
Weight
32.6 lbs (14.8 kg)
Height
3.44" (87.4 mm)
Depth
28.8" (730.3 mm)
HPE P20182-B21 ProLiant DL380 Gen10 server 311.68 TB 1.9 GHz 16 GB Rack (2U) Intel Xeon Bronze 500 W DDR4-SDRAM
Length | 73.03 in |
Width | 44.55 in |
Height | 8.74 in |
Weight | 14.790000 lbs |
