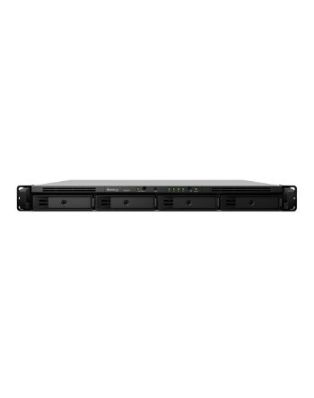

Synology RackStation RS820RP+ NAS Rack (1U) Ethernet LAN Aluminium, Black C3538
In Stock
|
Storage
Total installed storage capacity
32 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Supported storage drive types
HDD & SSD
Number of storage drives supported
4
Storage drive interface
Serial ATA
Hot-swap drive bays
Yes
RAID support
Yes
RAID levels
0-5-6-10-JBOD
Supported storage drive interfaces
Serial ATA
Storage drive sizes supported
2.5-3.5"
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
15 W
Tcase
87 °C
Stepping
B1
Processor threads
4
Processor socket
BGA 1310
Processor package size
34 x 28 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Denverton
Processor code
SR3L7
Processor cache type
Smart Cache
Processor cache
8 MB
Processor boost frequency
2.1 GHz
PCI Express slots version
3
CPU configuration (max)
1
Maximum internal memory supported by processor
256 GB
Conflict-Free processor
Yes
Processor ARK ID
97929
Processor frequency
2.1 GHz
Processor family
Intel Atom®
Processor model
C3538
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
2 GB
Maximum RAM supported
18 GB
Network
Link aggregation
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PCI Express x8 (Gen 3.x) slots
1
Ethernet LAN (RJ-45) ports
4
eSATA ports quantity
1
Hard drive
RAID support
Yes
RAID levels
0-5-6-10-JBOD
Design
Cooling type
Active
Fan diameter
4 cm
Product colour
Aluminium- Black
Number of fans
2 fan(s)
Chassis type
Rack (1U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
iSCSI LUN
Product colour
Aluminium- Black
Noise level
39.9 dB
LED indicators
HDD- LAN- Power- SSD- Status
Chassis type
Rack (1U)
Number of fans
2 fan(s)
Sustainability certificates
RoHS
Performance
Built-in iTunes server
Yes
Built-in FTP server
Yes
System log
Yes
Share folder access right management
Yes
Share folder
512
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
iSCSI LUN
On/off switch
Yes
Reset button
Yes
Noise level
39.9 dB
Management protocols
SNMP
Access Control List (ACL)
Yes
Third-party support
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
4 cm
Number of fans
2 fan(s)
Security
Access Control List (ACL)
Yes
Software
Mac operating systems supported
Mac OS X 10.11 El Capitan
Management features
On/off switch
Yes
Reset button
Yes
Management protocols
SNMP
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
150 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Weight & dimensions
Width
480 mm
Depth
518.6 mm
Height
44 mm
Weight
7.96 kg
Synology RackStation RS820RP+ NAS Rack (1U) Ethernet LAN Aluminium, Black C3538
| Length | 51.86 in |
| Width | 48.00 in |
| Height | 4.40 in |
| Weight | 7.960000 lbs |
