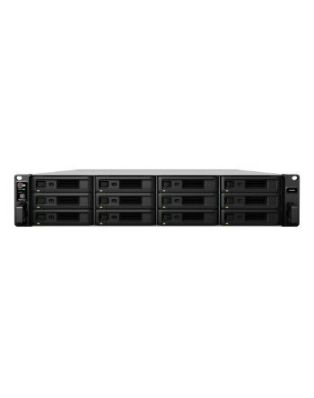

Synology SA3400 96TB (Seagate Ironwolf Pro) 12 bay NAS; Intel Xeon D-1541 8-Core2.1GHz processor; 1
In Stock
|
Storage
Storage drives installed
Yes
Installed storage drive type
HDD
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Hot-swap drive bays
Yes
RAID support
Yes
Storage drive sizes supported
2.5-3.5"
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
45 W
Stepping
V2
Scalability
1S
Processor threads
16
Processor socket
BGA 1667
Processor series
Intel Xeon D-1500
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DE
Processor cache
12 MB
Processor boost frequency
2.7 GHz
PCI Express slots version
2.0-3.0
PCI Express configurations
1x16-1x4-1x8
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Conflict-Free processor
Yes
Processor ARK ID
91199
Processor frequency
2.1 GHz
Processor family
Intel® Xeon® D
Processor model
D-1541
Processor cores
8
Memory
Internal memory type
DDR4
Internal memory
16 GB
Maximum RAM supported
128 GB
Memory slots
4
Network
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PCI Express x8 (Gen 3.x) slots
2
Ethernet LAN (RJ-45) ports
6
Expansion ports quantity
1
Hard drive
RAID support
Yes
Design
Cooling type
Active
Fan diameter
8 cm
Product colour
Black
Number of fans
4 fan(s)
LED indicators
HDD- Power
Chassis type
Rack (2U)
Technical details
Type
NAS
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black
Noise level
49.8 dB
Multilingual support
Yes
LED indicators
HDD- Power
Chassis type
Rack (2U)
Number of fans
4 fan(s)
Sustainability certificates
RoHS
Performance
System log
Yes
Type
NAS
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7
Server operating systems supported
Windows Server 2016
Web-based management
Yes
Security algorithms
HTTPS-SSH-SSL/TLS
Reset button
Yes
Operating system installed
DiskStation Manager
Noise level
49.8 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Number of fans
4 fan(s)
Security
Security algorithms
HTTPS-SSH-SSL/TLS
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7
Server operating systems supported
Windows Server 2016
Operating system installed
DiskStation Manager
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power consumption (HDD standby)
70.95 W
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Redundant power supply (RPS) support
Yes
Power consumption (typical)
137.17 W
Number of power supply units
1
Weight & dimensions
Width
482 mm
Depth
724 mm
Height
88 mm
Synology SA3400 96TB (Seagate Ironwolf Pro) 12 bay NAS; Intel Xeon D-1541 8-Core2.1GHz processor; 1
| Weight | 1.000000 lbs |
