Management features
PC health monitoring
CPU Fan LED Temperature
Processor
Processor socket
LGA 1151 (Socket H4)
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel C232
Intel Xeon series
E3-1200
Compatible processor series
Intel Core™ i3
Memory
Memory bus
72 bit
Supported UDIMM clock speeds
160018662133 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB 8GB 16GB
Number of DIMM slots
4
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum UDIMM memory
64 GB
Maximum internal memory
64 GB
ECC
Yes
Storage
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.53.5"
Performance
PC health monitoring
CPU Fan LED Temperature
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I210-AT
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
2
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
1
PCI Express slots version
3
Features
PC health monitoring
CPU Fan LED Temperature
Technical details
Number of fans
2 fan(s)
Fan diameter
1.57" (4 cm)
Certification
80 PLUS Gold
Rack-Friendly board
Yes
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS features
PCI 2.2SMBIOS 2.3
BIOS type
AMI
BIOS memory size
64 Mbit
ACPI version
2
Design
Number of fans
2 fan(s)
Fan diameter
1.57" (4 cm)
Certification
80 PLUS Gold
Rack-Friendly board
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.6 A
DC output current (+5 V)
0.33333333333333
DC output current (+12 V)
16 A
Power supply
200 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
8.44 lbs (3.83 kg)
Height
1.69" (43 mm)
Depth
11.3" (287 mm)

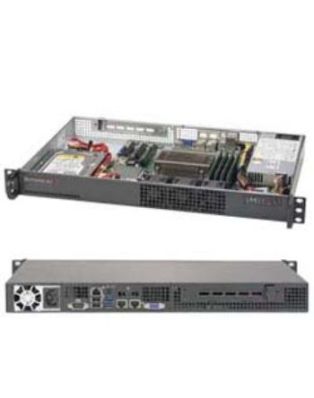

Supermicro SuperServer 5019S-L
Length | 28.70 in |
Width | 43.70 in |
Height | 4.30 in |
Weight | 3.830000 lbs |
