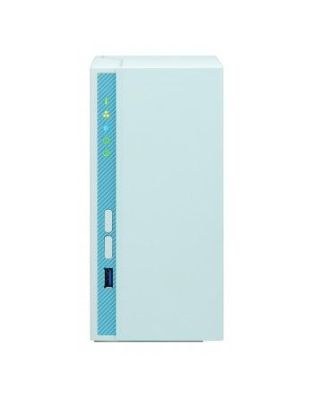

QNAP TS-230 NAS/storage server RTD1296 Ethernet LAN Tower Blue
In Stock
|
Storage
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
2
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-JBOD
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor frequency
1.4 GHz
Processor family
Realtek
Processor model
RTD1296
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
2 GB
Maximum RAM supported
2 GB
Flash memory
4000 MB
Network
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-JBOD
Design
Cooling type
Active
Fan diameter
8 cm
Product colour
Blue
Number of fans
1 fan(s)
LED indicators
HDD- LAN- Status- USB
Chassis type
Tower
Technical details
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
Product colour
Blue
Noise level
15 dB
Multilingual support
Yes
LED indicators
HDD- LAN- Status- USB
Chassis type
Tower
Buzzer
Yes
Number of fans
1 fan(s)
Performance
Built-in FTP server
Yes
Share folder access right management
Yes
Share folder
AFP- CIFS/SMB- FTP
S.M.A.R.T. support
Yes
Hot spare
Yes
Disk scan
Yes
Browser supported
Chrome- Firefox- Internet Explorer- Safari
Universal Plug and Play (UPnP)
Yes
Built-in BitTorrent client
Yes
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Reset button
Yes
Operating system version
4.4.1
Operating system installed
QNAP Turbo System
Noise level
15 dB
Multilingual support
Yes
Buzzer
Yes
Access Control List (ACL)
Yes
Third-party support
Yes
Video input channels
16 channels
Snapshot
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Fan voltage
12 V
Number of fans
1 fan(s)
Security
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operating system version
4.4.1
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Reset button
Yes
Power
Power consumption (HDD standby)
4.48 W
Power supply location
External
Power supply unit (PSU) capacity
65 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
12.277 W
Number of power supply units
1
External power adapter
Yes
Weight & dimensions
Width
90.2 mm
Depth
156.3 mm
Height
188.6 mm
Weight
1.11 kg
Package weight
1.99 kg
Packaging content
Number of screws
14
External power adapter
Yes
Cables included
AC- LAN (RJ-45)
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
1.99 kg
Cables included
AC- LAN (RJ-45)
Other features
Digital Living Network Alliance (DLNA) certified
Yes
QNAP TS-230 NAS/storage server RTD1296 Ethernet LAN Tower Blue
| Length | 15.63 in |
| Width | 9.02 in |
| Height | 18.86 in |
| Weight | 1.110000 lbs |
